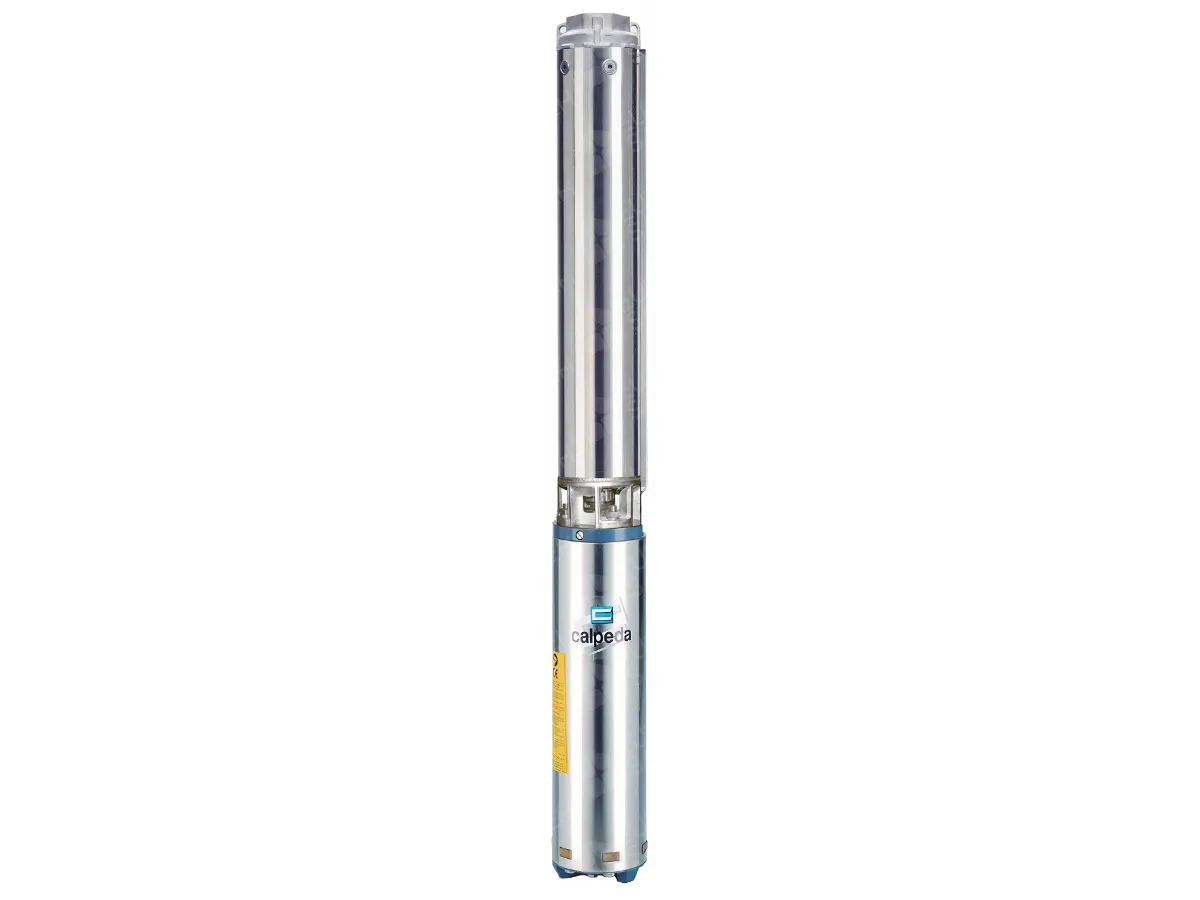

Submersible pump CALPEDA 6SDN 16/23 (13kw)
The CALPEDA 6SDN 16/23 pump with 13 kW power is a high-capacity industrial deep-well pump designed for heavy-duty operation. The model is intended for large facilities and water supply systems requiring increased performance and stable, continuous operation.
The AISI 304 casing, AISI 316 shaft, and integrated check valve ensure durability, safety, and full equipment protection. The pump is ideal for deep artesian wells and maintains efficient performance even in the presence of small amounts of sand.
Features of the 16/23 Model
▪️ Maximum flow within the 16-series
▪️ Premium stainless-steel materials
▪️ Support for frequency inverters
▪️ Horizontal installation possible
▪️ Long service life under continuous duty
Application Areas
▪️ main water intake and pumping stations;
▪️ fire-fighting systems;
▪️ large agricultural facilities;
▪️ municipal utility pumping systems;
▪️ industrial technological lines.
| Maximum pumping height, m: | 247 |
| Revolutions Per Minute, r/min: | 2900 |
| Maximum sand content in water, g/m³: | 150 |
| Degree of protection: | IP68 |
| Height teh, mm: | 1285 |
| Installation method: | Vertical |
| Max. liquid temperature, °C: | +30 |
| Coutry of brand: | Italy |
| Connection diameter, inch: | 3 |
| Weight, kg: | 22,5 |
| Diameter, mm: | 147 |
| Tip motor: | three-phase |
| Impeller Material: | Noryl |
| Body material: | Stainless steel |
| Water consumption, m³/h: | 25,0 |
| Power, kW: | 13,0 |
It is possible to order with installation
