Technical characteristics

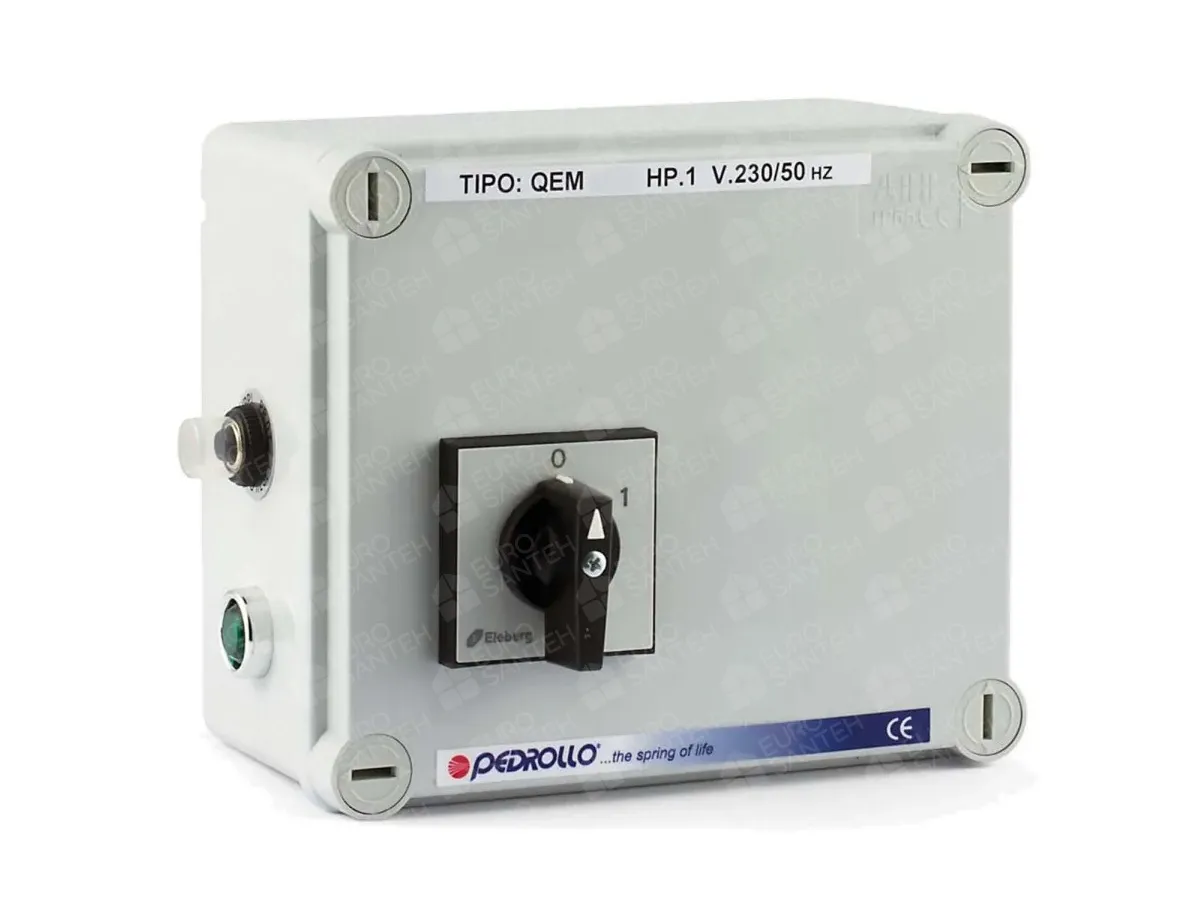

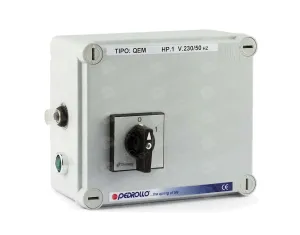

The Pedrollo QEM 050 control panel is designed for the automation and protection of single-phase submersible pumps with power up to 0.37 kW. It is an optimal choice for small water-supply systems, home wells, and cottage pumping installations.
The self-extinguishing thermoplastic IP55 enclosure ensures reliable operation even in humid technical rooms and wells. The panel protects the pump from overload, short circuit, and allows the connection of a float switch or pressure switch.
Advantages of QEM 050
▪️ Overload and short-circuit protection
▪️ Connection for float switch or pressure switch
▪️ Clear visual indication of pump operation
▪️ Capacitor included
▪️ Easy installation and maintenance
Equipment
▪️ Main switch with fuse
▪️ “Start/Stop” selector
▪️ Thermal protection with manual reset
▪️ Terminal board for connecting pump and sensors
▪️ Signal lamp
▪️ IP55 enclosure
Applications
▪️ 4" single-phase submersible well pumps
▪️ Domestic and cottage water-supply systems
▪️ Pressure maintenance in private installations
| Amperage, A: | 5 |
| Tip motor: | Single phase |
| Body material: | Plastic |
| Coutry of brand: | Italy |
| Voltage, V: | 220 |
| Power, kW: | 0,4 |
| Protection type: | IP55 |
| Temperatura maxima apa, °C: | +40 |
| Capacitance of the capacitor, µF: | 20 |
