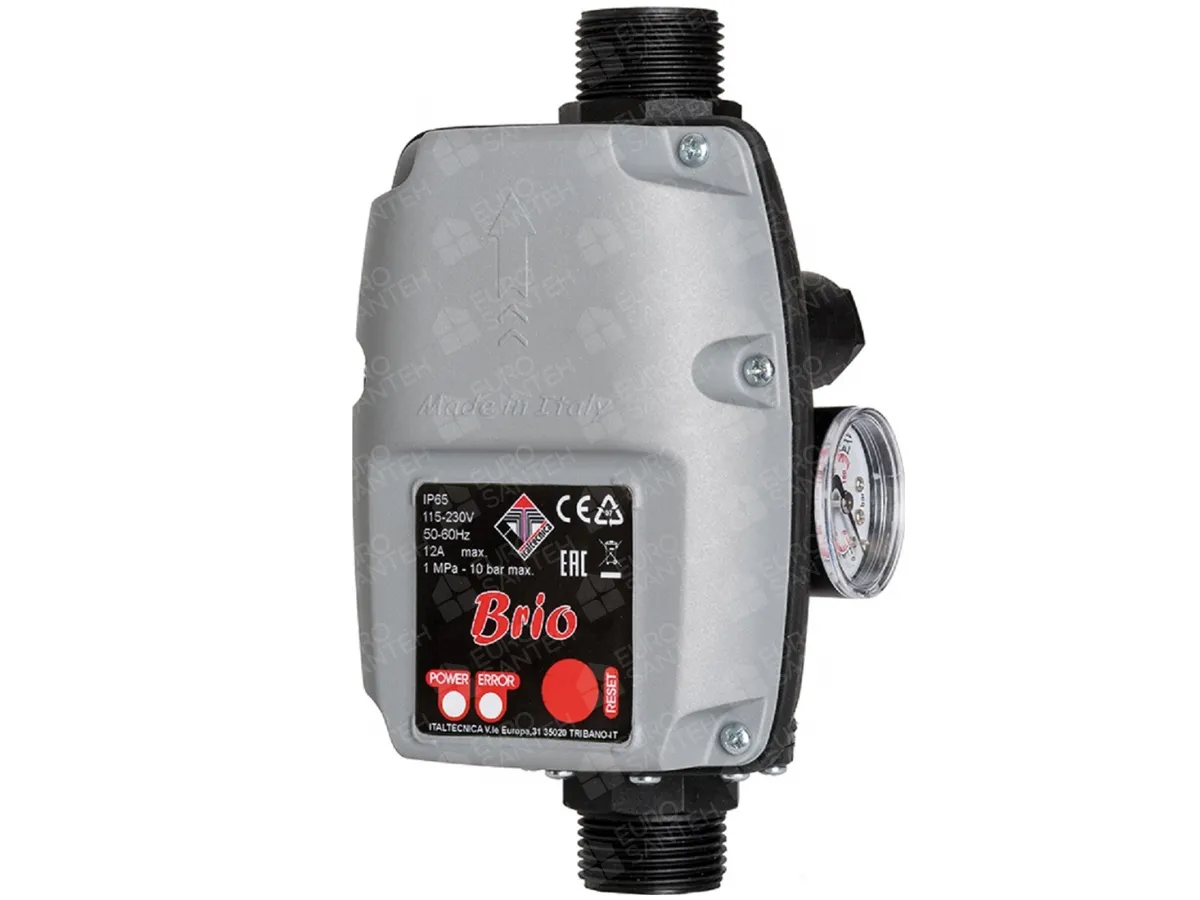

Brio-MT 2000 Electronic Pressure Regulator

The Brio-MT 2000 electronic pressure controller is an intelligent pump-management device designed to automate water-supply systems. It fully replaces the classic setup with a pressure tank and mechanical pressure switch, providing more accurate operation, easier installation, and reliable equipment protection.

The controller automatically starts the pump when taps are opened and stops it once water consumption ceases. Thanks to the built-in dry-run protection, the unit prevents the pump from operating without water, significantly extending its service life.

The model is suitable for household and small commercial pumps up to 2 HP, supports adjustable start pressure from 1 to 3.5 bar, and is rated for a maximum working pressure of 10 bar. The housing is equipped with standard 1" plumbing connections and can be installed both vertically and horizontally.

What is the Brio-MT 2000 pressure controller used for?

Automatic pump control

The controller starts the pump when pressure drops and stops it when water use ends — without a pressure tank.

Dry-run protection

The device instantly shuts down the pump when water is not present, preventing overheating and motor damage.

System status monitoring

The built-in manometer helps monitor pressure, diagnose system operation, and detect possible leaks.

Automatic restart function

When protection is triggered, the device periodically checks for water availability and restarts the pump automatically.

Suitable for filtration systems

It can be used in water-filter lines; if no pre-filter is installed, one is recommended before the controller.

Technical specifications — Brio-MT 2000

▪️ Adjustable start pressure: 1–3.5 bar
▪️ Maximum working pressure: 10 bar
▪️ Max current: 12 A, power supply 220 V, single-phase
▪️ Recommended output flow: up to 5 m³/h
▪️ Connection: 1" male thread
▪️ Built-in check valve
▪️ Flow-switch safety — pump shutoff when water is absent
▪️ Alarm/Reset button for manual reset
▪️ Supplied with cable and plug for quick installation
▪️ Automatic restart after protection

Advantages of the Brio-MT 2000

▪️ Fully replaces pressure-tank systems
▪️ Improves system stability and user comfort
▪️ Reduces the risk of pump failure
▪️ Provides smooth operation without pressure shocks
▪️ Easy installation in any orientation
▪️ Reliable pressure and flow monitoring
▪️ Compatible with most household pumps
