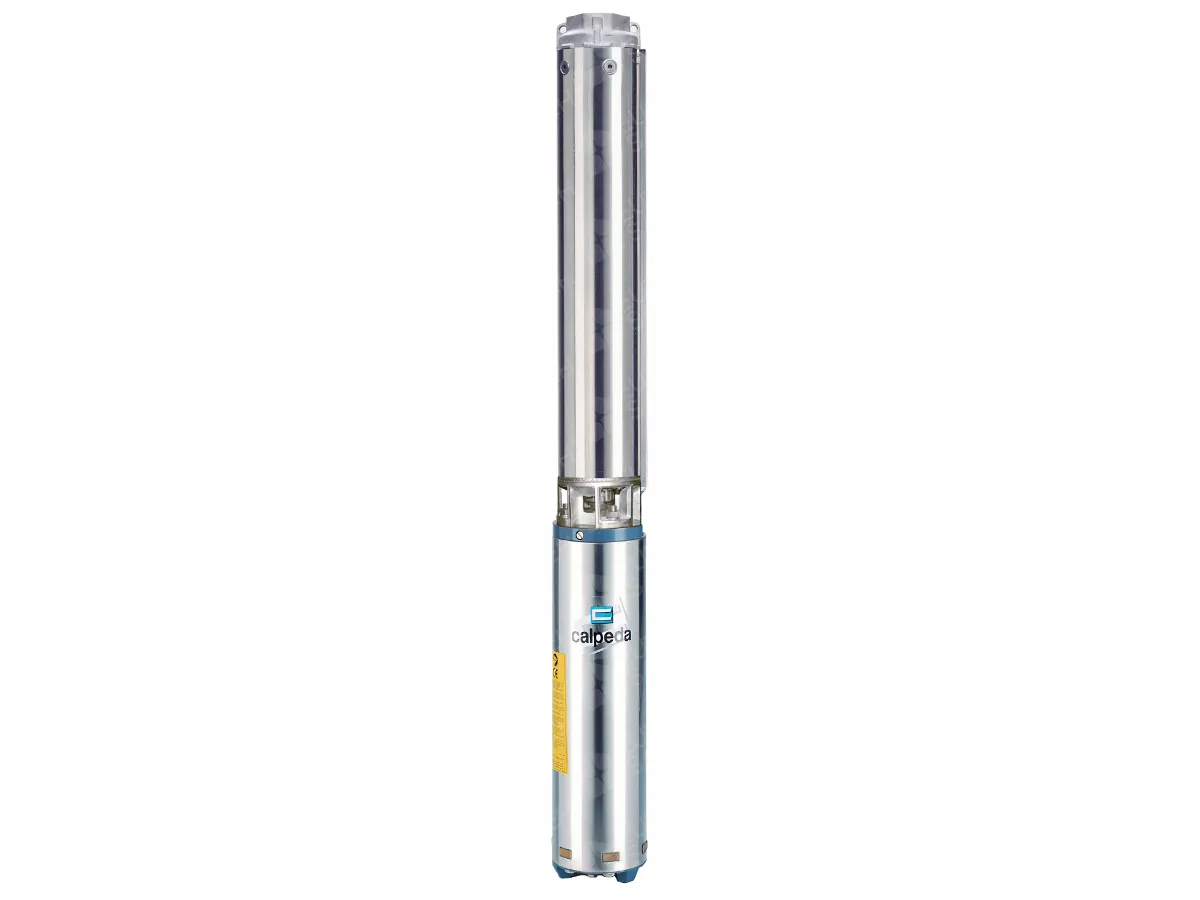

Submersible pump CALPEDA 6SDN 18/16 (22kw)

The CALPEDA 6SDN 18/16 pump, with 22 kW power, is an industrial deep-well pump featuring increased flow capacity and optimal pressure. The 18-series hydraulics deliver high water volumes with low energy consumption and stable long-term performance.

The pump is engineered for extended operation under harsh conditions; the casing and internal components are made from AISI 304 and AISI 316 stainless steel. The built-in strainer protects the hydraulic stages from abrasive particles up to 150 g/m³. The pump can operate in both vertical and horizontal positions (when using a cooling sleeve).

Advantages of the 18/16 Model

▪️ Maximum flow capacity in the 18-series
▪️ Powerful three-phase motor — 22 kW
▪️ Excellent corrosion resistance
▪️ Continuous duty operation
▪️ Supports frequency-inverter control
▪️ Ideal for high-demand water-supply systems
▪️ Up to 15 starts per hour allowed

Application Areas

▪️ large agricultural complexes;
▪️ industrial water-intake stations;
▪️ fire-protection systems;
▪️ municipal pumping stations;
▪️ deep artesian wells;
▪️ water supply for residential communities.

Operating Limits

▪️ Water temperature: 25–35°C
▪️ Sand content: up to 150 g/m³
▪️ Must operate fully submerged
