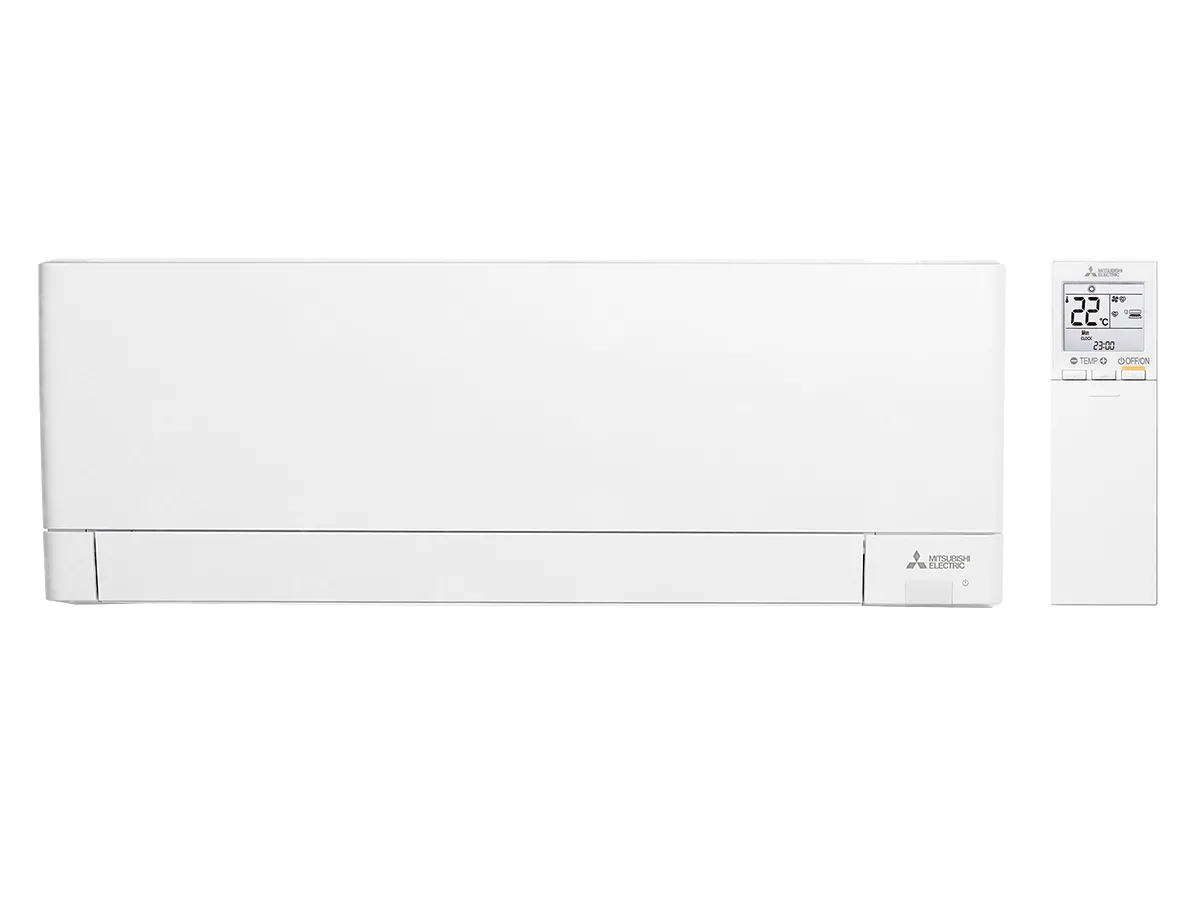

Mitsubishi Electric MSZ-AP Inverter Air Conditioner is a high-efficiency cooling and heating device featuring quiet operation and ergonomic design.
Advantages:
⏵ Equipped with dual motors that create two air streams:
Cooling mode delivers horizontal airflow to prevent direct cold drafts
Heating mode directs warm airflow downward
⏵ Easy maintenance with removable indoor unit casing. Includes full-size antioxidant filter that:
Improves air quality
Prevents bacteria and virus spread
Removes allergens
Restores health-safe air compounds
⏵ Special quiet fan mode reduces noise to just 19 dB(A), making it ideal for apartments and country houses
Health Protection Features:
⏵ Expanded filter surface area with 3D mesh structure enhances air purification
⏵ Nano-platinum filter provides superior air cleaning from pollutants
⏵ Filter contains platinum-ceramic particles that:
Provide antibacterial and antiviral treatment
Eliminate unpleasant odors
⏵ Optional silver ion antibacterial filtration
Functions:
⏵ Wi-Fi Control: Remote operation via internet using computers or mobile devices
⏵ Night Mode:
Dims indicator lights
Mutes operation sounds
Limits compressor speed for nighttime quiet operation
⏵ I Save Mode: Energy-saving heating with minimum +10°C room temperature. Air damper closes when unit is off
⏵ Self-Diagnosis: Displays error codes on remote control for easy troubleshooting
⏵ Auto Restart: Automatically resumes previous settings after power restoration
⏵ Turbo Airflow: Delivers fast and powerful air circulation
⏵ PAM (Pulse Amplitude Modulation):
Improves current sine wave in inverter system
Achieves near-perfect power factor (98%)
Minimizes high harmonics
Block type: | Indoor unit |
Room area, m²: | 60 |
Power, BTU: | 20000 |
Air conditioner type: | Wall mounting |
Compressor: | Inverter |
Hladagent: | R32 |
Heating to, °C: | -15...+24 |
Cooling power, kW: | 6,1 |
Heating power, kW: | 6,8 |
Cooling power consumption, kW: | 1,6 |
Heating electricity consumption, kW: | 1,7 |
Air flow, m³/h: | 1200 |
Noise level, dB: | 29/37/41/45/48 |
Maximum fall height, m: | 15 |
Maximum drawn length, m: | 30 |
Energy efficiency class: | A++ |
Connection diameter, inch: | 1/4x1/2 |
Internal block weight, kg: | 16,0 |
Indoor unit dimensions, mm: | 1100x257x325 |
Basic regimes: | Cooling / Heating / Drying / Ventilation |
Drying regime: | Yes |
Stop/start timer: | Yes |
Air filter: | Yes |
Ventilation regime: | Yes |
Additional regimes: | Uniform air distribution |
Operating temperature range, cooling, °C: | -10...+46 |
Regular fan speed: | Yes |
