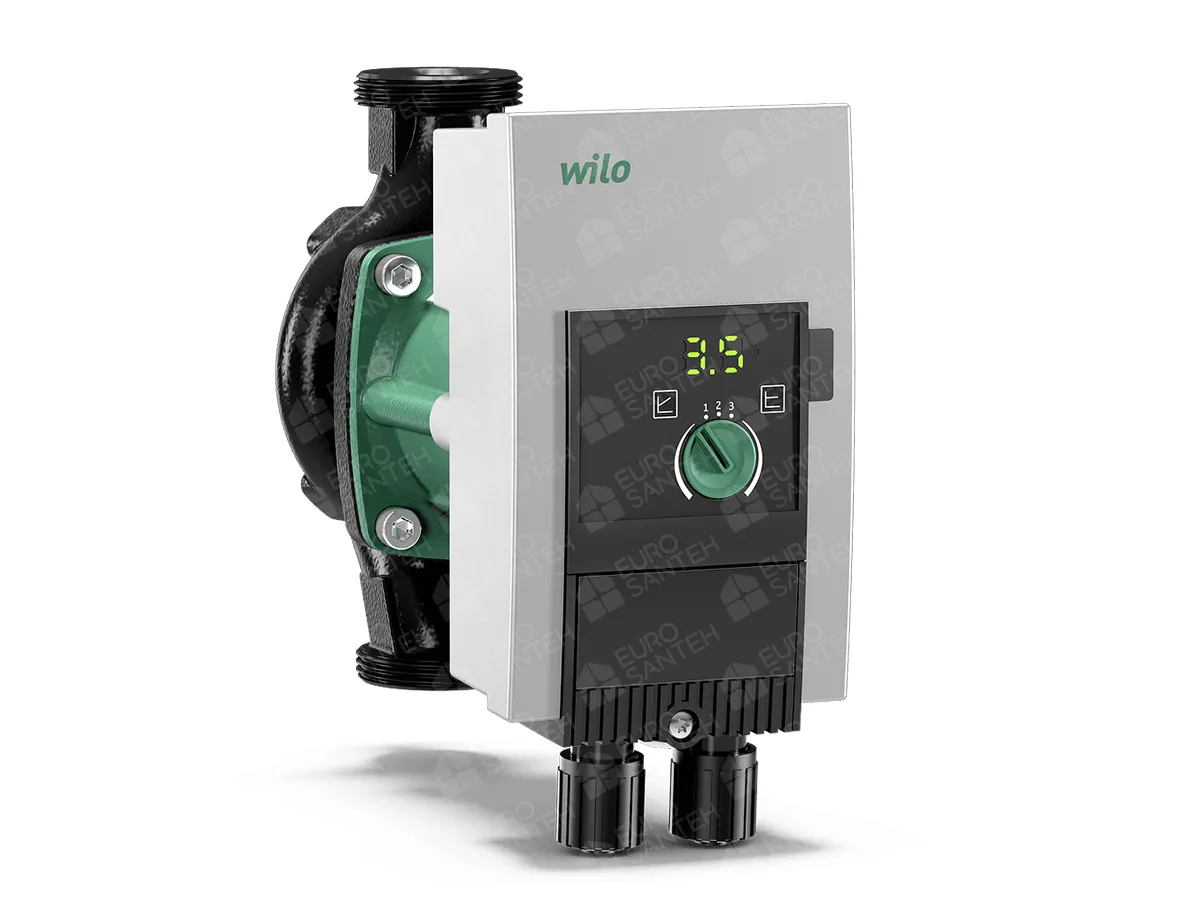

Circulation pump WILO MAXO 30/0,5-10 PN10 thread

The WILO MOXO 30/0,5-10 PN10 model is a powerful and energy-efficient pump designed for water circulation in complex heating and cooling systems. It is intended for use in building engineering networks, industrial circuits, and modern HVAC systems where high head pressure and stable operation under significant hydraulic loads are required.

Thanks to its electronically commutated EC motor, the pump offers stepless speed control and automatically adapts to current system demands. The LCD display simplifies setup and diagnostics, while the green control button ensures convenient operation.

Key functions and technical advantages:

▪️ High-efficiency ECM motor with automatic power regulation (EEI ≤ 0.20).
▪️ Supports three operating modes: ∆p-v, ∆p-c, and fixed speeds I/II/III.
▪️ LCD display showing head pressure, RPM, and error codes.
▪️ Hydraulics with cataphoretic coating for excellent wear and corrosion resistance.
▪️ Electrical connection via quick-release Wilo plug.
▪️ General fault signal (SSM) for complete system monitoring.
▪️ Upgrade option with Wilo-Connect Yonos MAXO module for BMS integration.
▪️ Soft start, unlocking function, and full motor protection for long service life.

Advantages of the 30/0,5-10 model:

▪️ Higher head and pressure performance compared to the smaller series model.
▪️ Ideal for medium and large heating and cooling systems.
▪️ Quiet operation, user comfort, and reduced maintenance costs.

Applications:

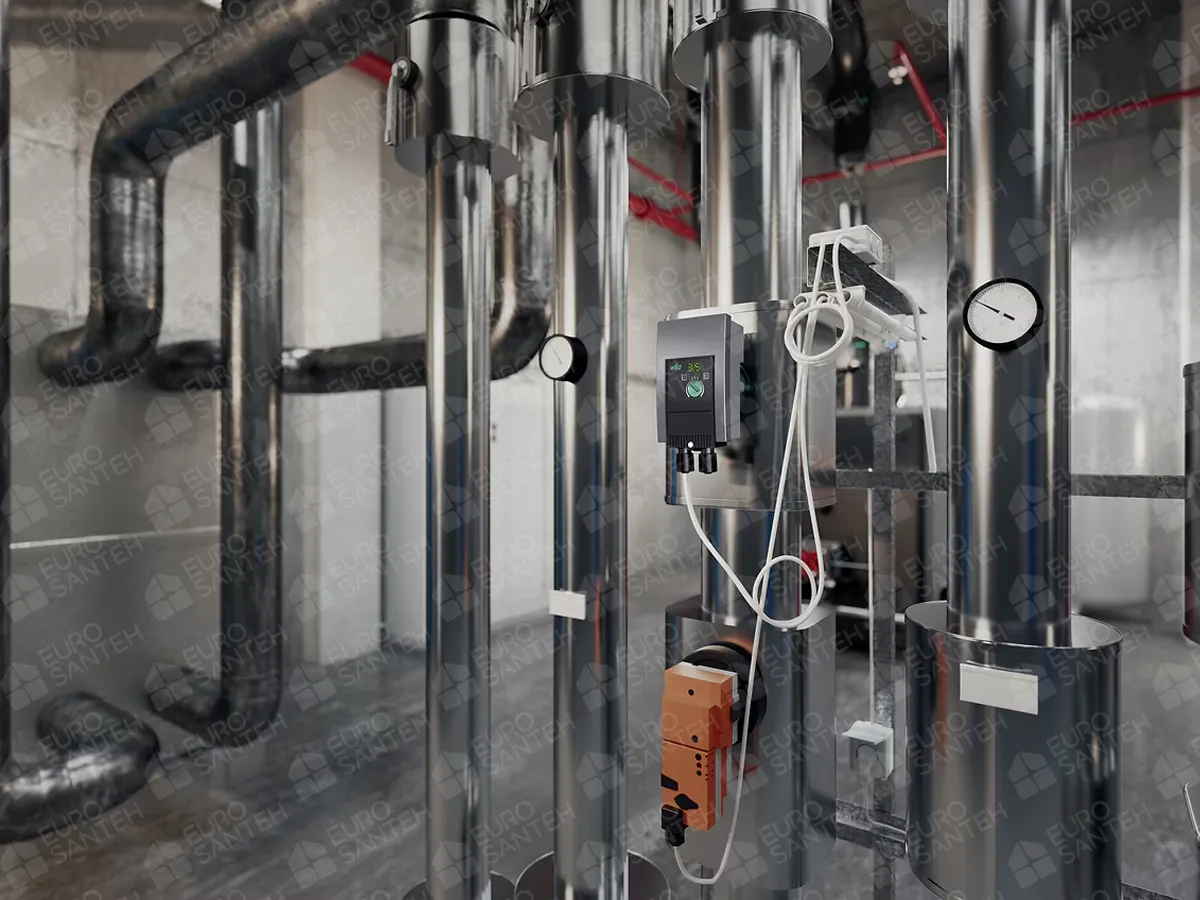

Heating systems in multi-apartment and office buildings, industrial circulation loops, fan coil units, air-conditioning systems, and closed cooling circuits with increased pressure requirements.
