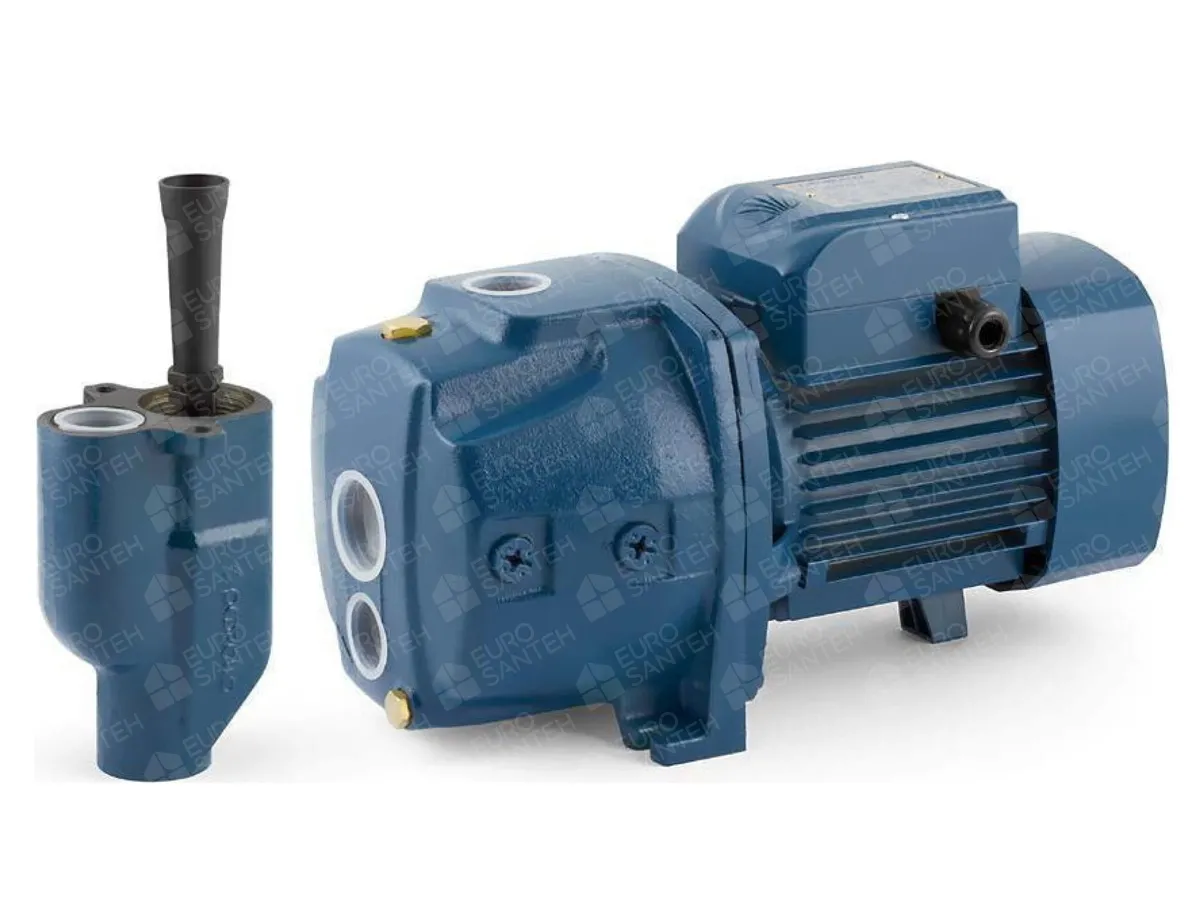

Pedrollo JDWm1Ax-30-4 is a high‐efficiency self‐priming pump with an ejector, specifically engineered for drawing water from wells up to 45 meters deep. Utilizing the Venturi principle, the pump creates a stable vacuum in the suction line, enabling reliable operation when installed above ground. It’s perfect for domestic tasks such as supplying water from deep wells, automatic home water systems, or drip irrigation.
Operating Principle
The pump features a built‐in ejector assembly with a Venturi tube. A portion of the water delivered by the impeller is recirculated back into the suction chamber. This recirculation generates the vacuum needed to lift water from the well. The incoming deep‐well water mixes with the recirculated fluid, increases its pressure, and is then discharged through the delivery port. This design allows pumping from depths far exceeding the standard 9 meters.
Construction Features
▪️ Cast‐iron pump casing—durable and wear‐resistant
▪️ Ejector unit installable up to 45 m depth
▪️ Single‐phase motor with built‐in thermal protection
▪️ Mechanical seal: ceramic / graphite / NBR
▪️ Protection class IP44, insulation class F
Applications
▪️ Water supply for private homes and vacation houses
▪️ Lifting water from deep wells
▪️ Garden, lawn, and greenhouse irrigation
▪️ Automatic water delivery systems with variable water levels
Installation Recommendations
Before the first start, fill the pipeline between the pump and ejector with water.
Install a non‐return valve at the ejector’s lower end and a safety valve on the delivery line.
The pump should be installed indoors or under a shelter protected from rain and freezing.
Why Buy from eurosanteh.md
Purchasing the JDWm1Ax-30-4 from eurosanteh.md ensures you receive genuine Pedrollo equipment with official warranty and Italian craftsmanship. We provide fast delivery, full technical support, and professional installation assistance. This pump is ideally suited for Moldova’s deep‐water source conditions.
Tip motor: | Single phase |
Power, kW: | 0,8 |
Maximum pumping height, m: | 53 |
Maximum depth, m: | 45 |
Weight, kg: | 16,4 |
Technical dimensions, mm: | 180x201x350 |
Body material: | Fonta |
Water consumption, m³/h: | 1,4 |
Inlet diameter, inch: | 1 |
Outlet diameter, inch: | 1 |
Installation method: | Horizontal |
Coutry of brand: | Italy |
Maximum working pressure, bar: | 10 |
Max. liquid temperature, °C: | +40 |
