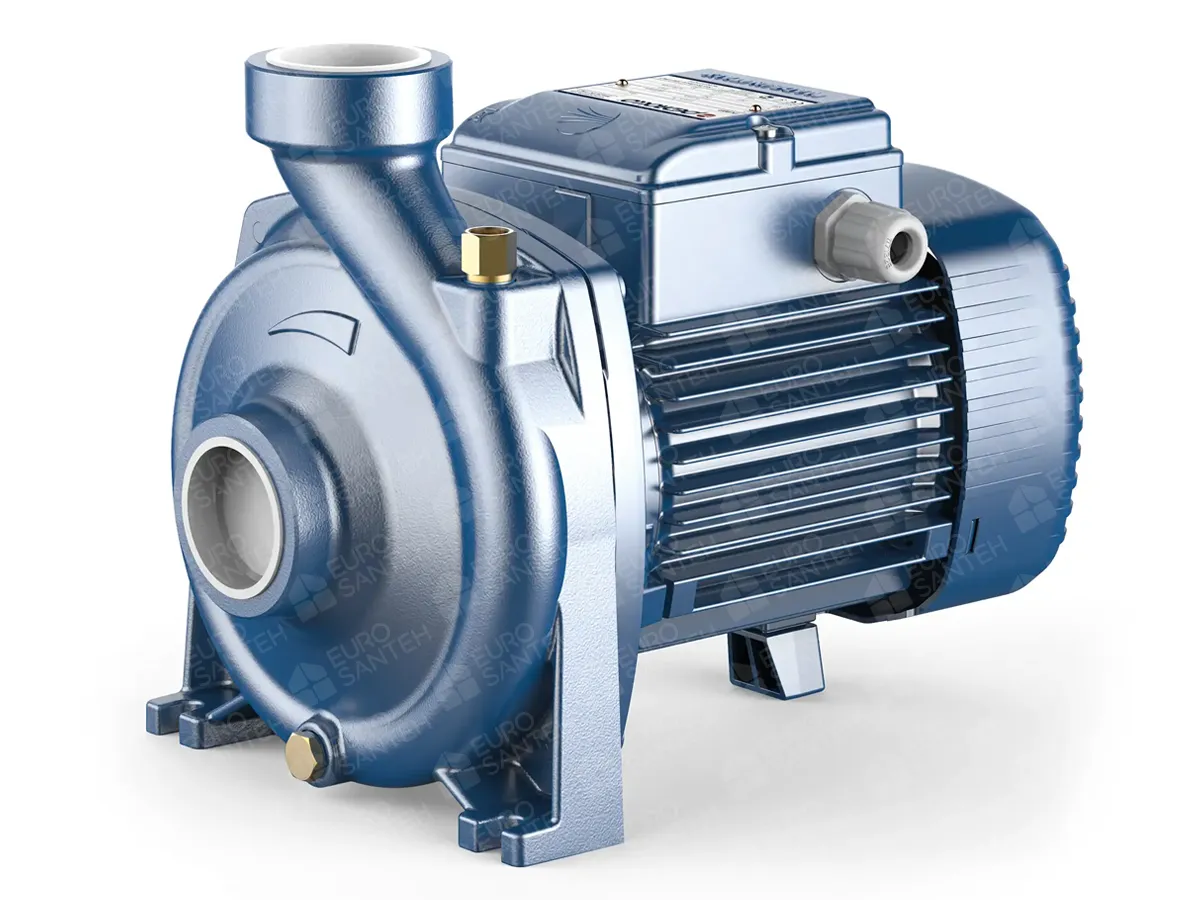

Pedrollo HFm 50B is a high-efficiency surface centrifugal pump designed for pumping clean water. Thanks to its optimal balance between flow rate and head, it is ideal for municipal, agricultural and various industrial applications.
The pump is highly resistant to intensive use and designed for long-term continuous operation. It is widely used for gravity irrigation, sprinkler systems, water supply to buildings and farms, and for drawing water from natural sources — lakes, rivers, wells and reservoirs.
Technical specifications:
▪️ Liquid temperature: –10 °C to +90 °C
▪️ Ambient temperature: up to +40 °C
▪️ Suction height: up to 7 m
▪️ Maximum pressure: 6 bar
▪️ Duty cycle: continuous (S1)
Applications:
▪️ Irrigation and drip systems;
▪️ Water supply for houses, buildings and farms;
▪️ Pumping water from tanks and natural sources;
▪️ Cooling systems and process lines;
▪️ Agriculture and municipal facilities.
Advantages:
▪️ High energy efficiency and stable performance;
▪️ Reliable under long-term loads;
▪️ Low noise and vibration levels;
▪️ Easy installation and maintenance;
▪️ Resistance to temperature and pressure fluctuations.
⚠️ The pump should be installed indoors or in areas protected from direct weather exposure.
Pedrollo HFm 50B is a versatile centrifugal pump for water supply and irrigation, combining high performance, durability and ease of use. It’s a reliable solution for engineering systems in municipal, agricultural and industrial applications.
Protection type: | IP44 |
Impeller Material: | Brass |
Height teh, mm: | 200 |
Tip motor: | Single phase |
Power, kW: | 0,4 |
Maximum pumping height, m: | 9 |
Maximum depth, m: | 7 |
Weight, kg: | 8,1 |
Technical dimensions, mm: | 276x200x165 |
Body material: | Fonta |
Water consumption, m³/h: | 18,0 |
Inlet diameter, inch: | 1 1/2 |
Outlet diameter, inch: | 1 1/2 |
Installation method: | Vertical |
Coutry of brand: | Italy |
Maximum working pressure, bar: | 6 |
Max. liquid temperature, °C: | +90 |
