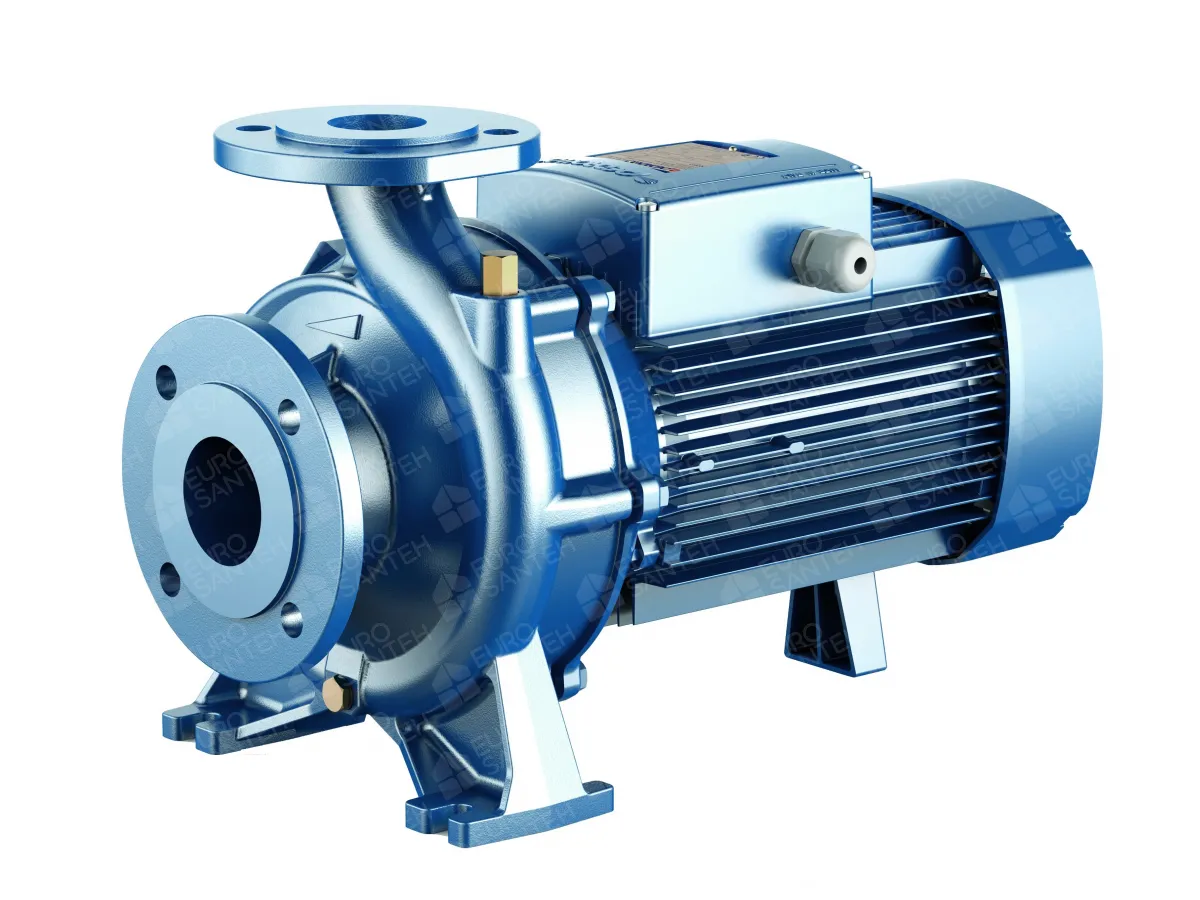

Pedrollo F40/160A Centrifugal Pump

Pedrollo F40/160A is a universal monoblock end-suction surface pump with flanged connections and a cast iron casing. It is designed for pumping clean water and liquids that do not react chemically with the construction materials. The pump stands out for its high performance, resistance to heavy loads and long service life.

The model is intended for stationary installation and is used in systems with constant water consumption — from irrigation to fire-fighting and industrial networks.

✅ Technical specifications:

High flow rate optimized for circulation and water supply systems;

Rotational speed: 2900 rpm;

Suction head: up to 7 m;

Maximum working pressure: 10 bar (PN10);

Liquid temperature: –10 °C to +90 °C;

Ambient temperature: –10 °C to +40 °C;

Insulation class: F, protection: IP 55.

✅ Construction materials:

Casing and cover: cast iron GJL 200 EN 1561;

Impeller: brass CW617N EN 12165;

Shaft: stainless steel AISI 431;

Mechanical seal: graphite / ceramic / NBR.

✅ Applications:

Collective water supply and irrigation systems;

Technical water supply and circulation systems;

HVAC (heating and air conditioning) systems;

Fire-fighting and washing installations;

Agricultural and industrial use.

⚠️ For correct and long-lasting operation, the pump must be installed in protected indoor areas.

Pedrollo F40/160A is a reliable and highly efficient pump designed for the stable transfer of large volumes of water in industrial and municipal systems. Its durability, versatility and energy efficiency make it an excellent choice for continuous operation in demanding conditions.
