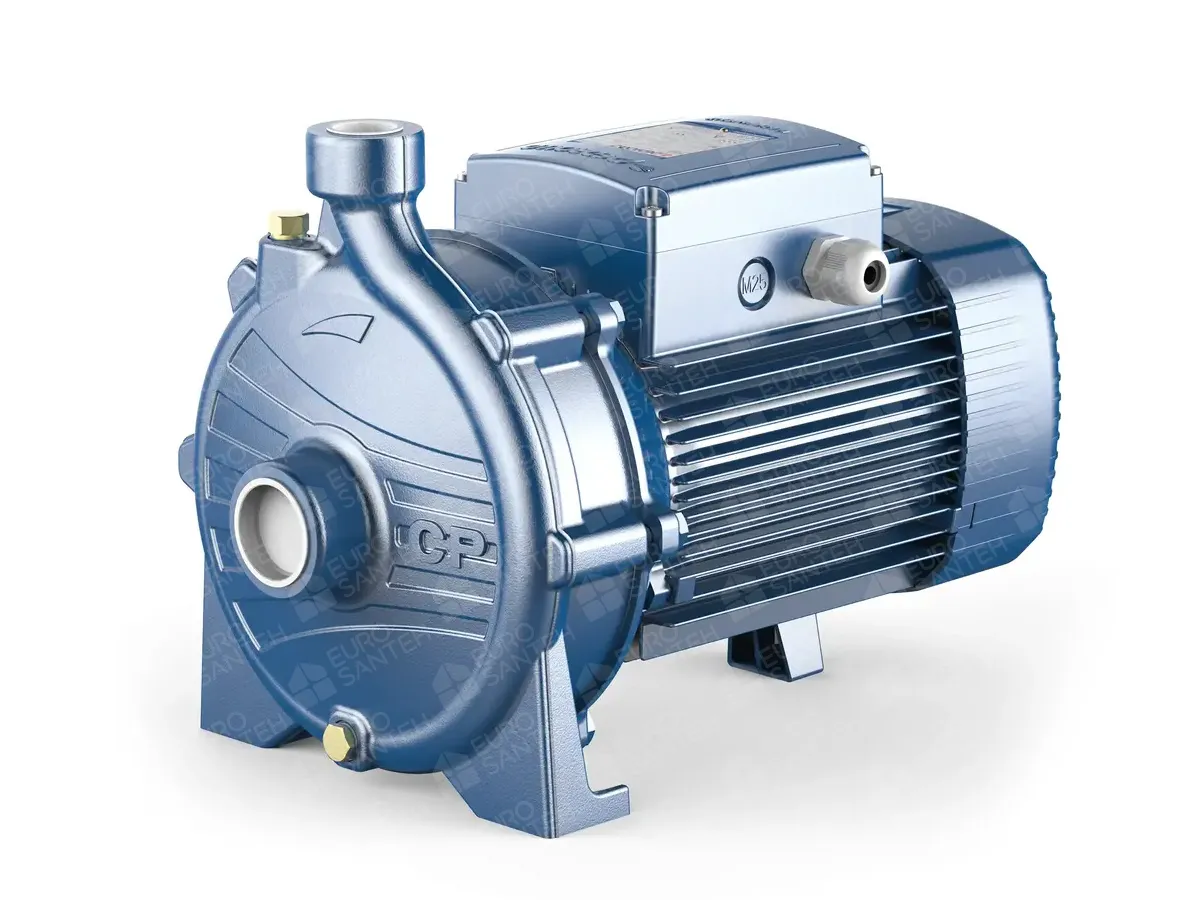

Pedrollo CPm 130 is a compact and efficient single-impeller centrifugal pump, ideal for private homes, cottages and small irrigation systems. The model is distinguished by its easy installation, quiet operation and low energy consumption.
The pump operates efficiently with liquid temperatures up to +90 °C, providing stable pressure suitable for domestic use.
Advantages:
▪️ Reliable cast iron housing with anti-corrosion coating;
▪️ Hydraulic components made of AISI 304 stainless steel;
▪️ Capable of continuous operation;
▪️ Suction depth up to 7 m;
▪️ Compact design and easy installation.
Pedrollo CPm 130 is a reliable and affordable pump for domestic water supply, irrigation and pressure boosting systems. It stands out for its stable operation, durability and ease of maintenance.
Protection type: | IPX5 |
Impeller Material: | Brass |
Height teh, mm: | 205 |
Tip motor: | Single phase |
Power, kW: | 0,4 |
Maximum pumping height, m: | 23 |
Maximum depth, m: | 7 |
Weight, kg: | 7,8 |
Technical dimensions, mm: | 253x205x165 |
Body material: | Fonta |
Water consumption, m³/h: | 4,8 |
Inlet diameter, inch: | 1 |
Outlet diameter, inch: | 1 |
Installation method: | Vertical |
Coutry of brand: | Italy |
Maximum working pressure, bar: | 10 |
Max. liquid temperature, °C: | +90 |
