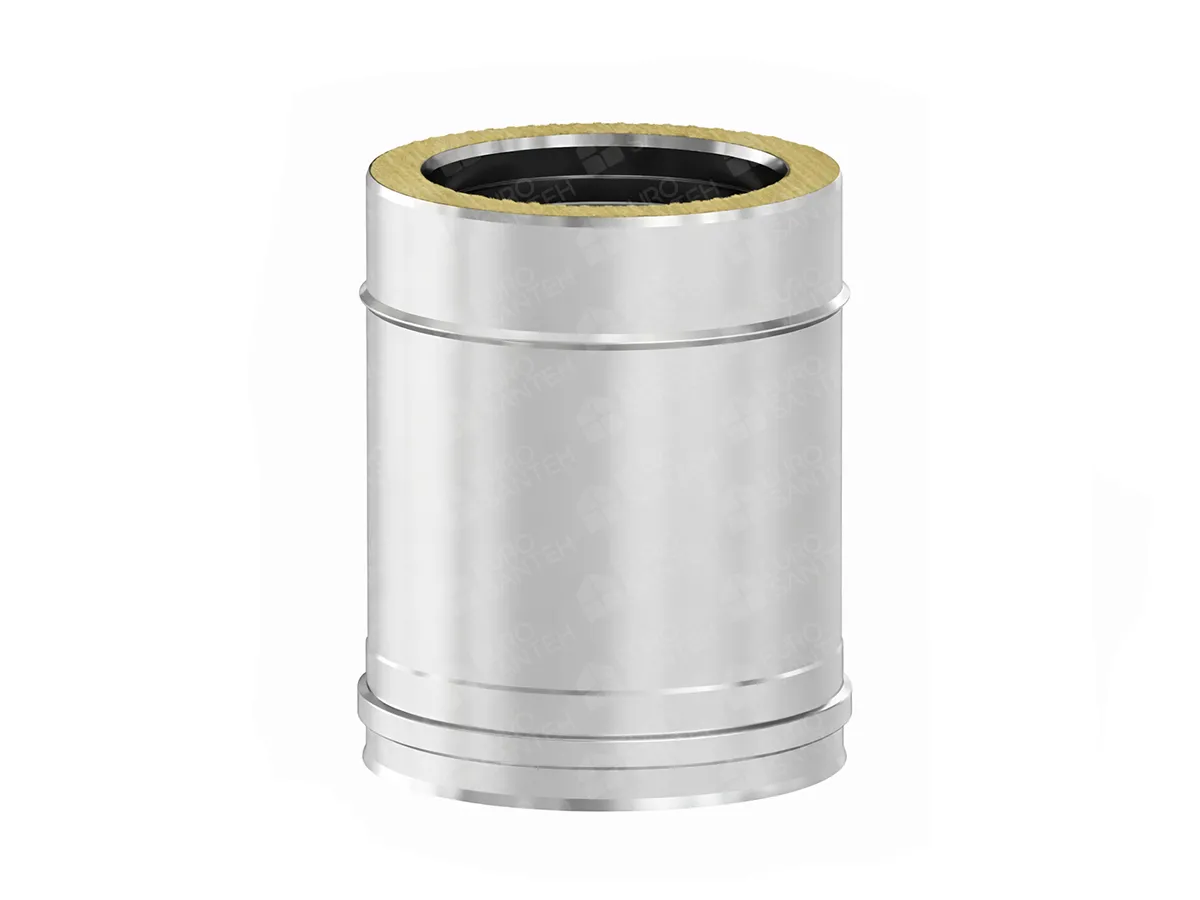

Insulated chimney pipe 250 mm SOLINOX Ø180–230 (inox 316L/304)

The insulated chimney pipe SOLINOX with a 250 mm length and Ø180–230 mm dimensions is a sandwich element for building higher-capacity flue systems. The 180 mm inner diameter is typically used with more powerful heat generators and in applications where confident flue-gas evacuation with minimal resistance is required, while the 230 mm outer diameter is formed by the insulation layer and the outer shell.

The design is engineered for real chimney operating conditions: temperature cycling, humidity, chemically active condensate, and intermittent “start-up — intensive firing — cool-down” regimes. The AISI 316L inner liner is more resistant to acids that form when flue gases cool and condensate occurs. This is especially noticeable in shoulder seasons, during short firing cycles, and when using fuel with higher moisture content. The AISI 304 outer shell provides structural rigidity, external corrosion resistance, and long-lasting appearance. The thermal insulation between the two walls helps retain flue-gas temperature, supports stable draft, and reduces the risk of condensate forming in critical chimney zones.

A 250 mm length is a practical format for precise assembly when standard long sections are inconvenient — for example, when passing through floors/ceilings, building nodes with a tee/inspection section, creating a short span between brackets and support elements, or fine-tuning the overall route height. Modular construction also simplifies maintenance: individual parts can be replaced if needed without dismantling the entire system.

The Ø180–230 diameter is chosen when higher flue-gas flow and lower channel resistance are required. At the same time, the insulated design addresses two common issues with large-diameter chimneys: rapid cooling and condensate. The result is more predictable system behavior and fewer factors that can degrade draft performance.

The pipe is compatible with matching-size insulated chimney components: supports, clamps, brackets, tees, inspection sections, cones, terminals, and pass-through elements. Suitable for private homes, boiler rooms, and commercial facilities — anywhere the chimney must operate reliably for the long term.
