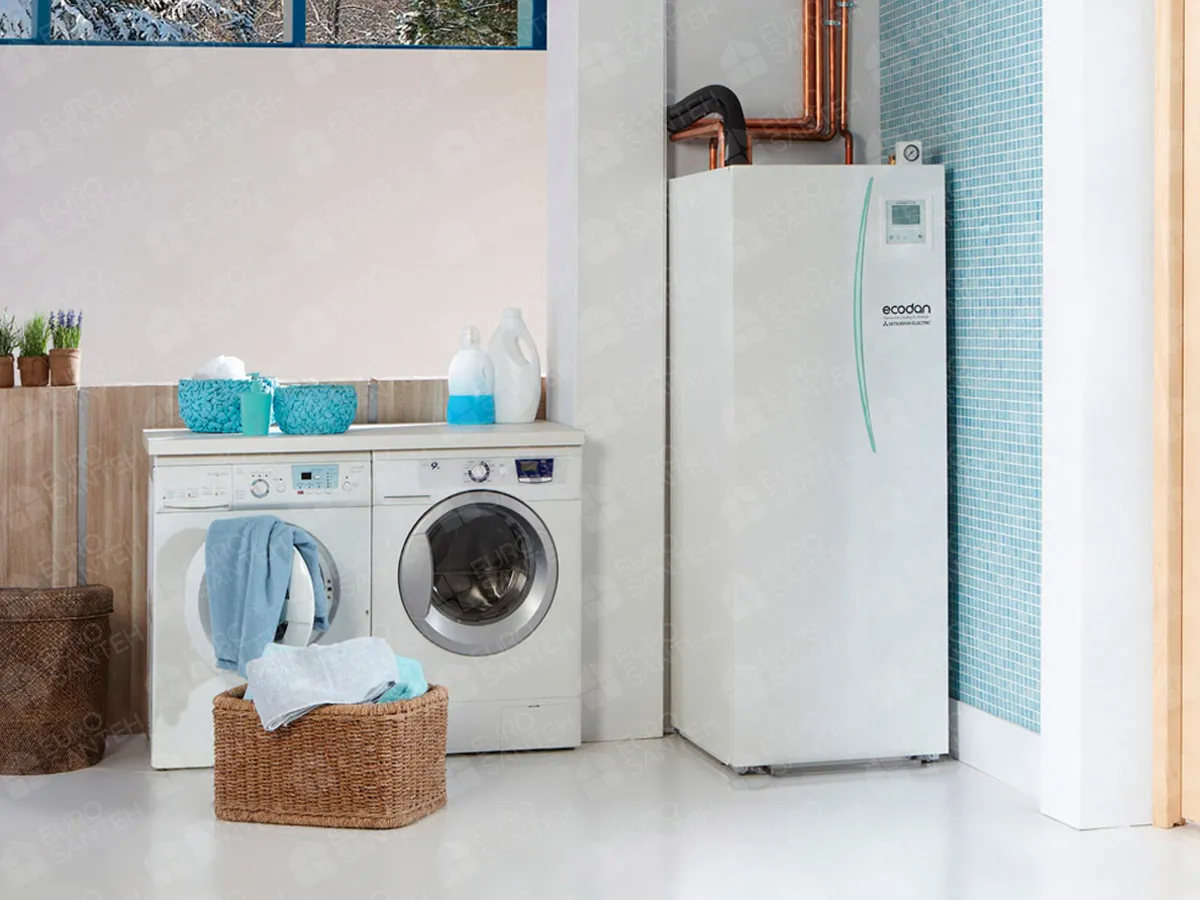

Heat pump indoor unit Mitsubishi Electric Ecodan with integrated boiler ERST20F-VM6E (200 litres)

Mitsubishi Electric Ecodan ERST20F-VM6E heat pump indoor unit with an integrated 200-liter boiler is a modern module for organizing heating, cooling and domestic hot water production in a private house, cottage, townhouse, villa or small commercial space. The model operates as part of Mitsubishi Electric Ecodan split systems and makes it possible to create an energy-efficient air-to-water system.

The indoor unit combines the hydraulic section and the hot water storage tank in one casing. This makes the equipment convenient to install in a technical room and allows installation without a separate boiler. The solution is suitable for projects where compact dimensions, neat installation, simple maintenance and stable operation of the engineering system are important.

200-liter boiler for everyday use

The integrated 200-liter domestic hot water tank is designed for comfortable household use. It is suitable for a home with a kitchen, bathroom, shower areas and several water draw-off points. This volume provides a good hot water reserve for a family and helps make the system more convenient in everyday operation.

The tank is made of stainless steel, which is resistant to corrosion. This is especially important for equipment that is constantly in contact with water. The stainless steel tank increases system reliability and contributes to the long service life of the indoor unit.

Scale protection and stable performance

A standard anti-scale filter is provided to protect the domestic hot water heat exchanger. It helps limit limescale formation and maintain stable heat exchange. As a result, the system operates more reliably, while the risk of reduced performance due to deposit accumulation is lowered.

This protection is especially important during long-term heat pump operation. It helps maintain equipment efficiency and reduces the likelihood of frequent service interventions.

Heating, cooling and hot water

Mitsubishi Electric Ecodan ERST20F-VM6E supports three operating modes: heating, cooling and hot water production. This allows the system to be used not only in winter, but also in summer, if compatible water emitters for cooling are included in the project.

During the heating season, the heat pump supplies heat to the building’s water circuit. In the warm season, the system can participate in room cooling, while the integrated boiler continues to provide hot water for household needs. This combination makes Ecodan a versatile solution for a modern home.

Operation with radiators, underfloor heating and fan coils

The indoor unit is suitable for systems with different types of heat emitters. It can be used with radiators, underfloor heating, fan coils and fan-assisted convectors. This allows Mitsubishi Electric Ecodan to be adapted to different buildings and different requirements for flow temperature.

Support for two independent heating zones allows the system to be more precise. For example, underfloor heating can operate in low-temperature mode, while radiators can work in a separate circuit with a different temperature schedule. The user can adjust comfort separately for different parts of the house.

Water temperature up to 60°C without a backup source

As part of a compatible system, the heat pump can provide an outlet water temperature of up to 60°C at an outdoor temperature down to -3°C without using a backup power source. Rated heating capacity is maintained in the range from +7°C to -3°C.

Guaranteed system operation is possible at outdoor temperatures down to -25°C. This makes ERST20F-VM6E a suitable solution for heating homes in Chisinau and Moldova, where stable equipment operation during the cold season is important.

Self-adaptive control for comfort and savings

The self-adaptive control mode allows the system to respond more accurately to real indoor conditions. The automation takes into account solar radiation, the presence of people, internal heat gains and the building’s actual heating demand. As a result, the heat pump adjusts its output without unnecessary energy consumption.

The user can change the desired temperature more easily, without complex heating curve adjustment. The system independently adapts its operation to current conditions, maintaining a balance between comfort and efficiency.

Defrosting and reliable operation

In cold weather, the outdoor unit may switch to defrosting mode. This process lasts on average no more than 10 minutes and is necessary to maintain correct heat pump operation. The system minimizes the impact of defrosting on indoor comfort and continues to maintain the set temperature mode.

Remote system control

With an additional Wi-Fi interface, the indoor unit can be connected to the MELCloud service. The user gets access to system control via smartphone, tablet or computer. It is possible to change the temperature, check operating modes, control hot water and manage settings remotely.

Installation and maintenance flexibility

The Mitsubishi Electric Ecodan split configuration allows refrigerant lines with a total length of up to 80 meters. This provides greater freedom when choosing the location for the outdoor unit and indoor module. In a split system, freeze protection is not required, which simplifies installation and operation.

Mitsubishi Electric Ecodan ERST20F-VM6E is a reliable heat pump indoor unit with an integrated 200-liter boiler for those looking for a modern solution for heating, cooling and domestic hot water production.
