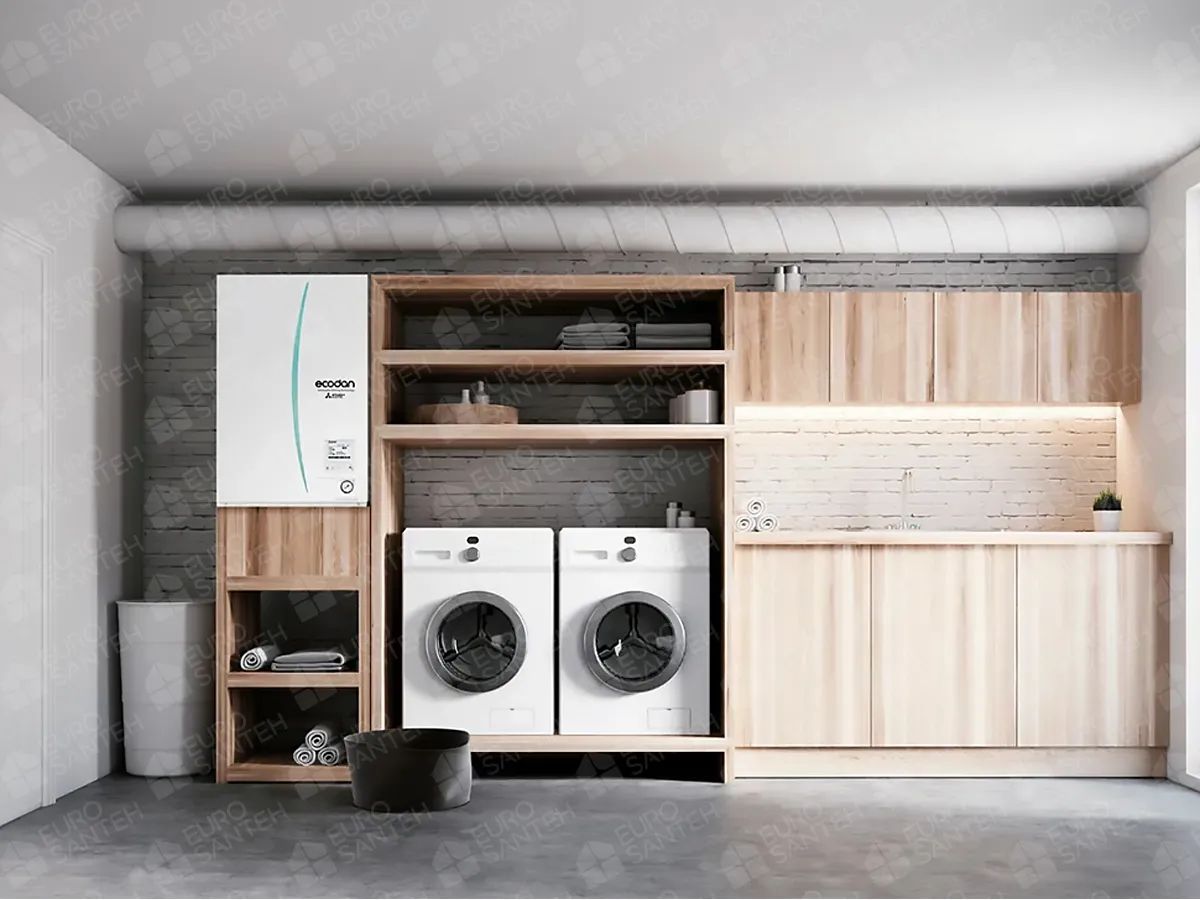

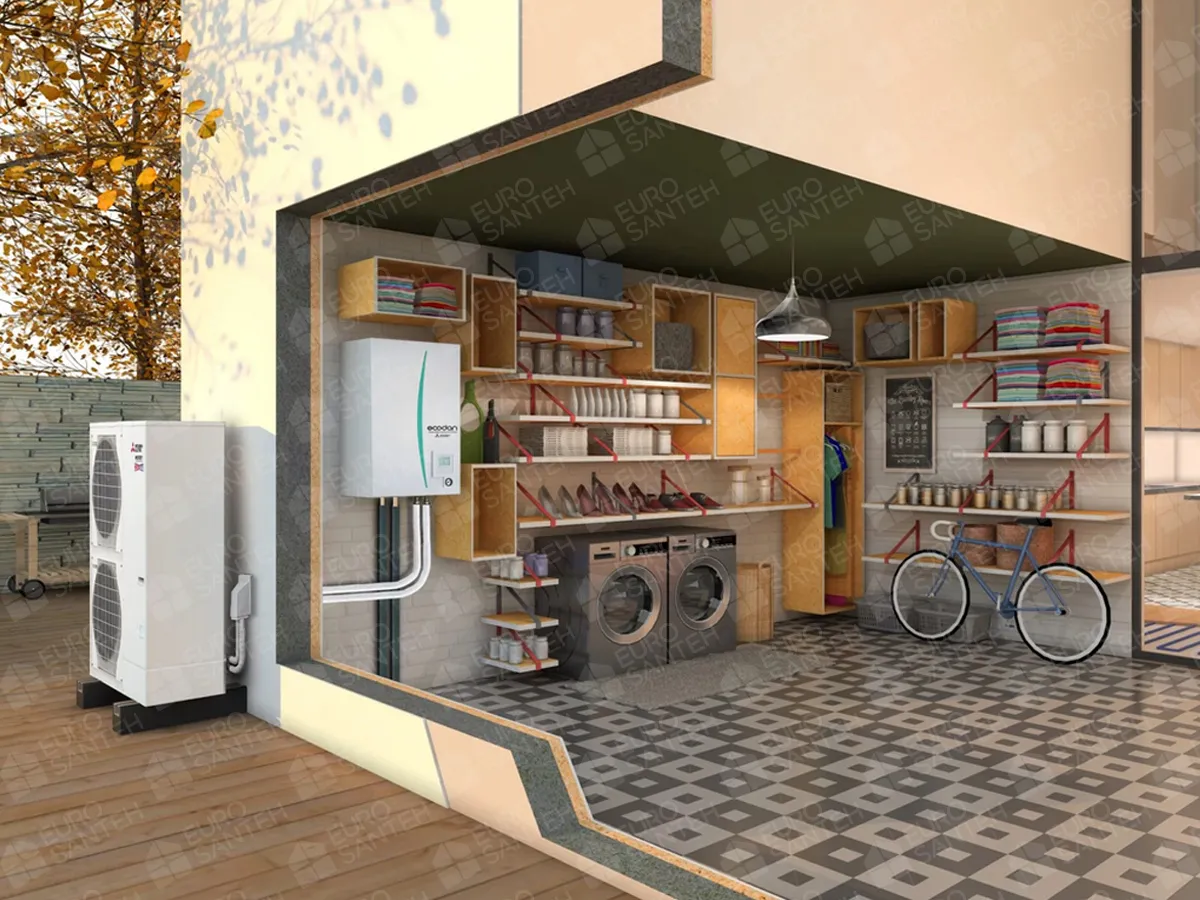

Heat pump indoor unit Mitsubishi Electric Ecodan ERSF-VM6E

Mitsubishi Electric Ecodan ERSF-VM6E is an indoor unit for an air-to-water heat pump, designed for water-based heating and cooling systems where a higher water flow temperature is required. The model is suitable for private houses, cottages, renovated buildings, properties with radiator heating and spaces where it is important to preserve the existing heating circuit.

The equipment operates together with a Mitsubishi Electric Ecodan outdoor unit. The outdoor module extracts heat from the air, while the indoor hydraulic unit transfers it to the heating system. This layout makes it possible to switch to modern energy-efficient heating without necessarily replacing the entire internal engineering system.

Reinforced high-temperature heat exchanger

This model is equipped with a reinforced high-temperature heat exchanger. It is better suited for radiator heating and properties where a higher water flow temperature is required. This is an important advantage for houses with traditional radiators, partially modernized buildings and systems where underfloor heating is not the main heat source.

ERSF-VM6E has a single-phase connection, so it is suitable for most private houses with a standard electrical network. The model combines convenient connection with the ability to operate in more demanding heating systems.

Solution for radiator heating

The high-temperature heat exchanger makes ERSF-VM6E a good choice for modernizing existing heating systems. If radiators are already installed in the house and switching to underfloor heating is not planned, this model helps adapt the heat pump system to real operating conditions.

This type of indoor unit is especially relevant for properties in Chisinau and Moldova where a reliable heat pump is required for home heating with water radiators, stable flow temperature and convenient control.

New color controller

The indoor unit is equipped with a new main controller with a touch panel and color display. It provides quick access to heat pump functions, temperature settings, heating and cooling parameters.

Information is displayed clearly and conveniently, so the user can easily monitor system status. This type of controller makes operation more modern, intuitive and comfortable.

Flexible flow temperature adjustment

ERSF-VM6E supports adjustment of the flow temperature change rate. The user can choose one of the following modes: Auto, Normal, Slow or Fast. For radiator heating, the fast mode is especially useful, as it allows the flow temperature to be increased more dynamically and helps achieve a comfortable indoor climate more quickly.

After the set temperature is reached, the system maintains stable heating output. This helps use energy rationally and prevents unnecessary fluctuations. For well-insulated houses or combined systems, the normal or slow mode can be selected to improve energy efficiency.

Magnetic filter and hydraulic circuit protection

The model is equipped with a high-efficiency magnetic filter. It captures metallic microparticles and other solid contaminants that may appear in the water circuit. This is especially important when modernizing existing heating systems, where deposits and fine particles may be present in the pipes.

The filter helps maintain normal circulation of the heat transfer fluid, reduces the risk of clogging and protects system components. The quick-release connection makes maintenance easier and filter cleaning more convenient.

Cooling with weather-based adjustment

In generation E indoor units, a weather compensation curve is provided for cooling mode. The system determines the target chilled water temperature based on the outdoor temperature and data from the main circuit.

This helps avoid excessively low water temperature, reduces the load on the equipment and lowers operating costs. The function makes cooling more precise and economical.

Automatic mode switching

ERSF-VM6E can automatically switch between heating and cooling. When the outdoor temperature reaches the set value, the system changes the operating mode without the need for constant manual adjustment. This is especially convenient in transitional seasons, when the air temperature can change noticeably during the day.

Installation and maintenance

The new water pipe system simplifies indoor unit connection. All water pipes are located on the rear edge of the upper part of the unit, making installation neater and more convenient. The design makes access to the main elements easier and helps create a cleaner appearance in the technical area.

Mitsubishi Electric Ecodan ERSF-VM6E is a single-phase indoor unit with a reinforced high-temperature heat exchanger for radiator heating, modernization of existing systems and properties where a higher water flow temperature is required.
