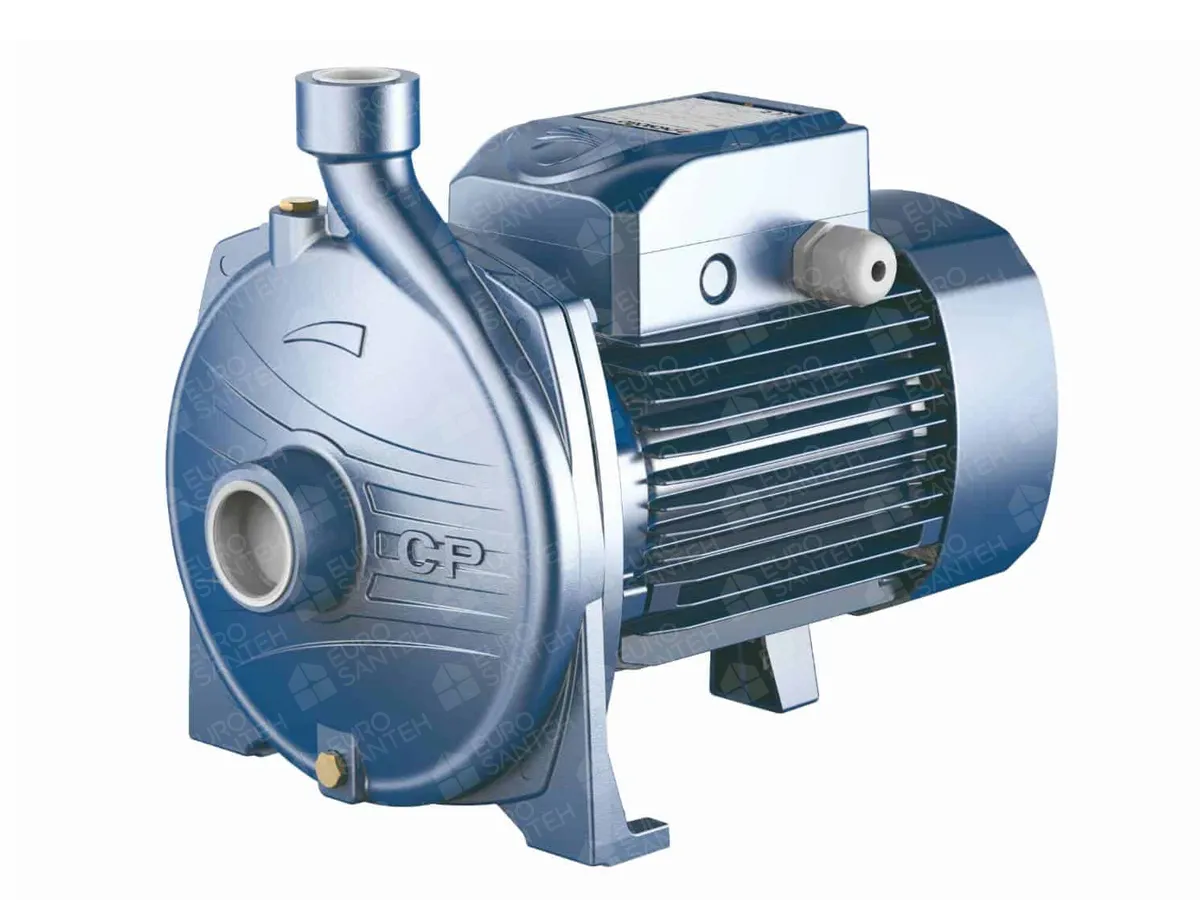

Pedrollo CP 250B-N is the highest-capacity model in the CP series, specifically engineered for heavy-duty applications, including fire-fighting systems, industrial process workflows, and large irrigation complexes. It is a professional-grade pump for tasks demanding maximum flow and head.
Pump Advantages:
▪️ Exceptionally high performance;
▪️ Reinforced construction for continuous operation;
▪️ Reliable operation in high-volume liquid systems;
▪️ Enhanced wear and thermal stress resistance;
▪️ Easy maintenance.
Operating Principle:
The rotating impeller generates powerful centrifugal force, enabling the pump to move large volumes of water in minimal time. The fluid passes through the diffuser, where kinetic energy converts into pressure, ensuring a stable supply even under intense use. The design is built to withstand continuous heavy industrial duty.
Construction Features:
▪️ Reinforced cast-iron casing;
▪️ Brass impeller with optimized profile;
▪️ Reinforced heat-resistant polymer diffuser;
▪️ High-efficiency motor with thermal protection;
▪️ Stainless-steel shaft;
▪️ Insulation: class F;
▪️ Mechanical seal: ceramic + graphite.
Applications:
▪️ Industrial pumping stations;
▪️ Centralized irrigation systems;
▪️ Fire-fighting systems;
▪️ Agricultural pump units;
▪️ High-flow water-supply networks.
Tip motor: | three-phase |
Power, kW: | 7,5 |
Maximum pumping height, m: | 61 |
Maximum depth, m: | 7 |
Weight, kg: | 74,0 |
Technical dimensions, mm: | 507x322x392 |
Body material: | Fonta |
Water consumption, m³/h: | 54,0 |
Inlet diameter, inch: | 2 |
Outlet diameter, inch: | 2 |
Installation method: | Horizontal |
Coutry of brand: | Italy |
Maximum working pressure, bar: | 10 |
Max. liquid temperature, °C: | +90 |
