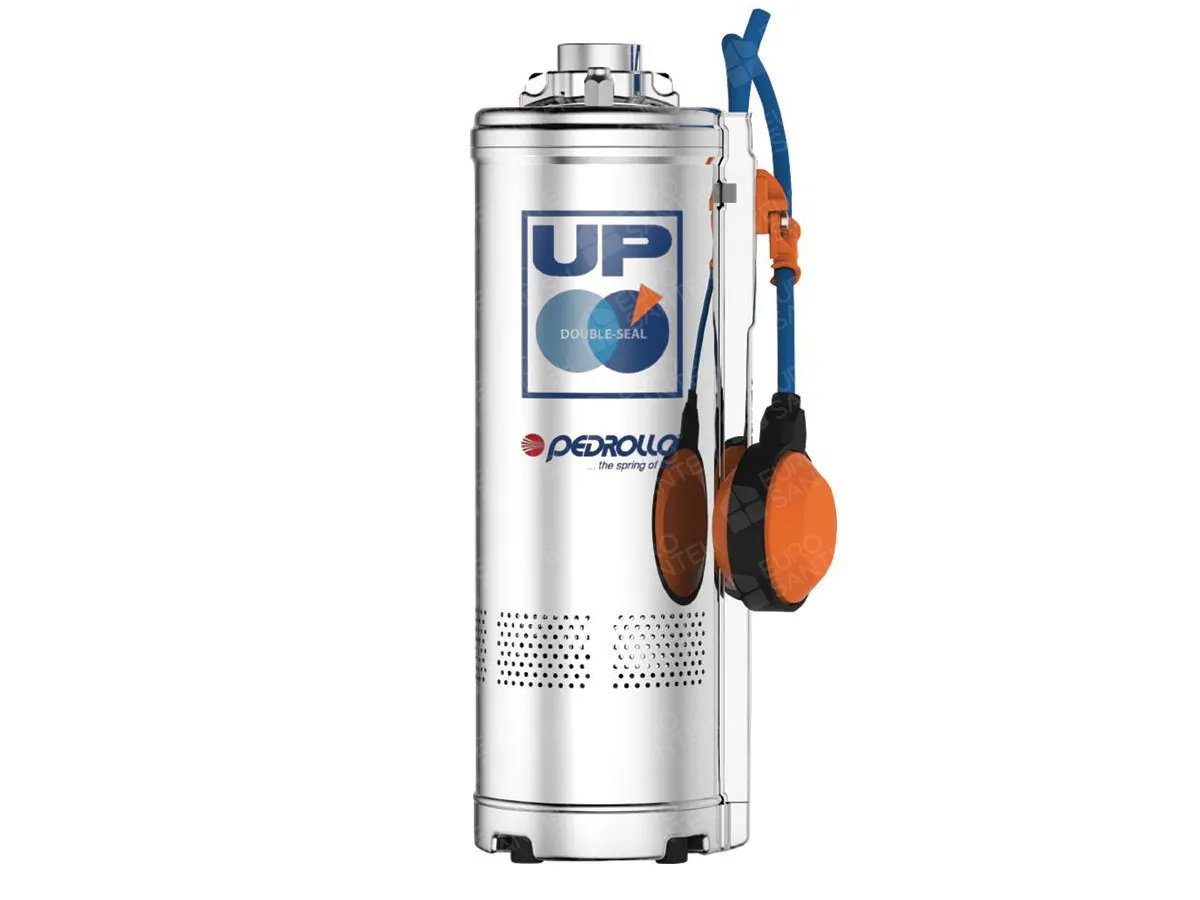

Deep well electric pump Pedrollo UPm2-4 up to 62m, 0.75 kW

The Pedrollo UPm2-4 is an innovative submersible multistage electric pump designed to provide exceptional reliability when pumping clean water. Thanks to patented technical solutions that prevent seizing, and high efficiency, this well pump will be an ideal choice for a wide range of tasks in domestic, municipal, and agricultural sectors. With a power of 0.75 kW and the ability to provide a head of up to 62 meters, it guarantees a stable water supply.

Innovations for Uninterrupted Operation

Pumps from the UP series, and Pedrollo UPm2-4 in particular, are designed with the needs of the modern user in mind, offering:

▪️Patented anti-seizing solutions: Innovative engineering developments significantly increase the pump's reliability, minimizing the risks of failures.

▪️High efficiency: Ensures optimal water flow with minimal energy consumption.

▪️Reliability: The design and materials guarantee a long service life even under intensive use.

Applications and Ease of Installation

The Pedrollo UPm2-4 has a wide range of applications due to its versatility and ease of use:

▪️Water supply: Ideal for supplying clean water from wells, boreholes, and storage tanks.

▪️Automatic water supply: In combination with pressure tanks, it provides an uninterrupted water supply to the house.

▪️Irrigation: Effective for watering gardens and vegetable patches.

▪️Pressure boosting: Used to increase water pressure in existing water supply systems. Pump installation should be carried out indoors or in locations protected from atmospheric agents, which provides additional equipment protection and extends its service life.

Technical Specifications and Limitations:

▪️Maximum Head: Up to 62 meters.

▪️Liquid Type: Clean water.

▪️Liquid Temperature: Up to +40 °C.

▪️Maximum Sand Content: Not more than 150 g/m³.

▪️Immersion Depth: Up to 20 meters (with appropriate power cable length).

▪️Motor Operating Mode: S1 (continuous).

▪️Impeller: Multi-blade.

The Pedrollo UPm2-4 is a high-quality, reliable, and easy-to-use solution that will ensure stable water supply and enhance comfort in your home and on your property.
