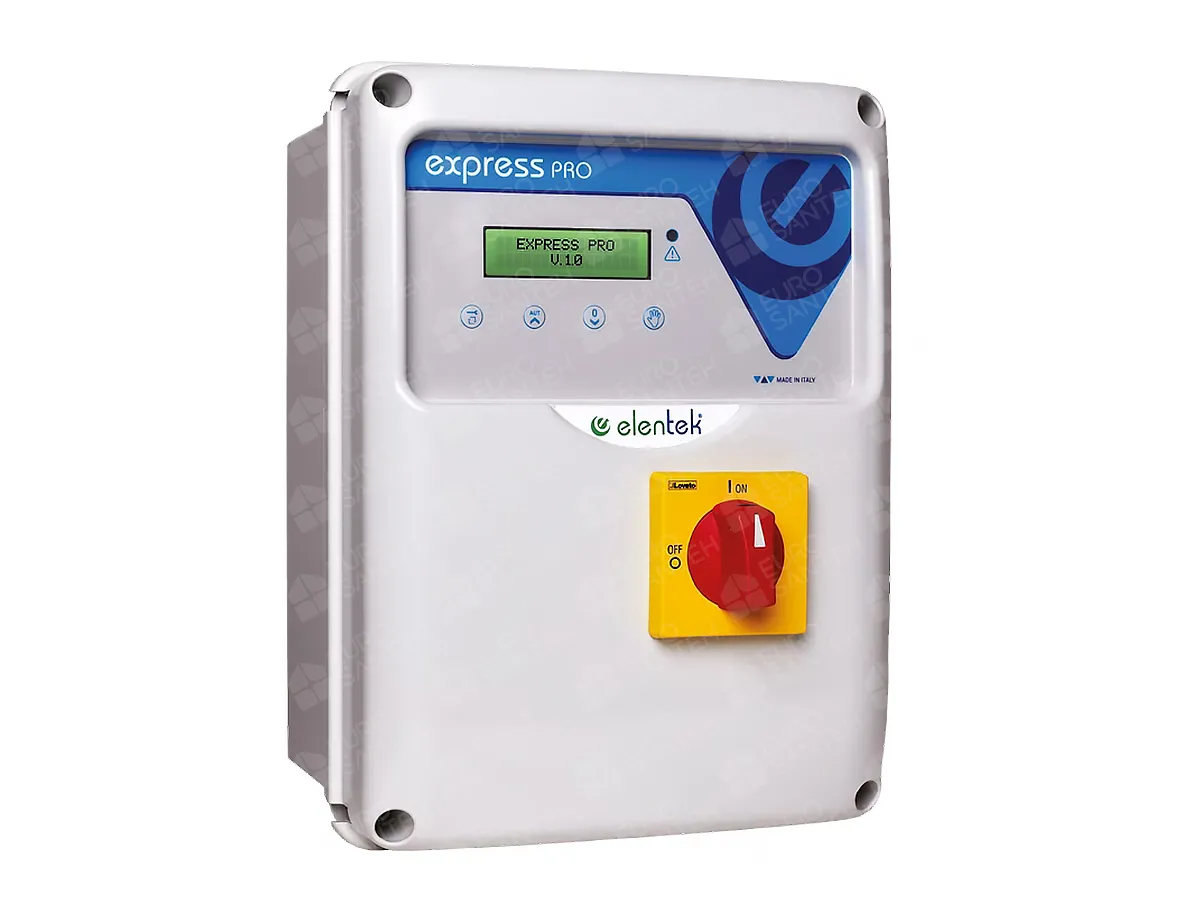

Control panel Elentek EXPRESS PRO 1 – Tri / 11 kW

Elentek EXPRESS PRO 1 – Tri 11 kW is a reinforced version of the popular EXPRESS PRO control panel, designed for three-phase pumps up to 11 kW. This model is built for demanding systems such as sewage pumping stations, fire-fighting installations, industrial facilities and high-capacity pumping stations.

Intelligent control functions

▪️Quick selection of one of the 6 factory presets.
▪️LCD display showing motor status, alarms, current, voltage, cosφ and analog data.
▪️Operating modes: Automatic, 0, Manual.
▪️Automatic anti-blocking function to prevent rotor seizure.
▪️Pump management with full integrated protection.

Advanced adjustments

▪️Up to 6 control inputs: pressure switches, float switches, level sensors.
▪️Analog input 4–20 mA or 0–10 V.
▪️Configurable alarm delays and automatic reset for minimum-current protection.
▪️Input inversion (NO/NC).
▪️Alarm history for service diagnostics.

Protection and alarm system

▪️Alarms: minimum current, overload, level faults, voltage faults, thermal motor contacts.
▪️Full error display on the screen.
▪️General alarm output contacts.
▪️Fuses and lockable isolator switch.
▪️ABS housing IP55 — dustproof and waterproof.

Applications

▪️Sewage pumping stations (SPS/KNS)
▪️Industrial pumping stations
▪️High-duty irrigation systems
▪️Pressure-boosting systems for commercial buildings
▪️Any installation with pumps up to 11 kW

EXPRESS PRO 1 Tri 11 kW is a professional control panel designed for the most powerful pump systems.
