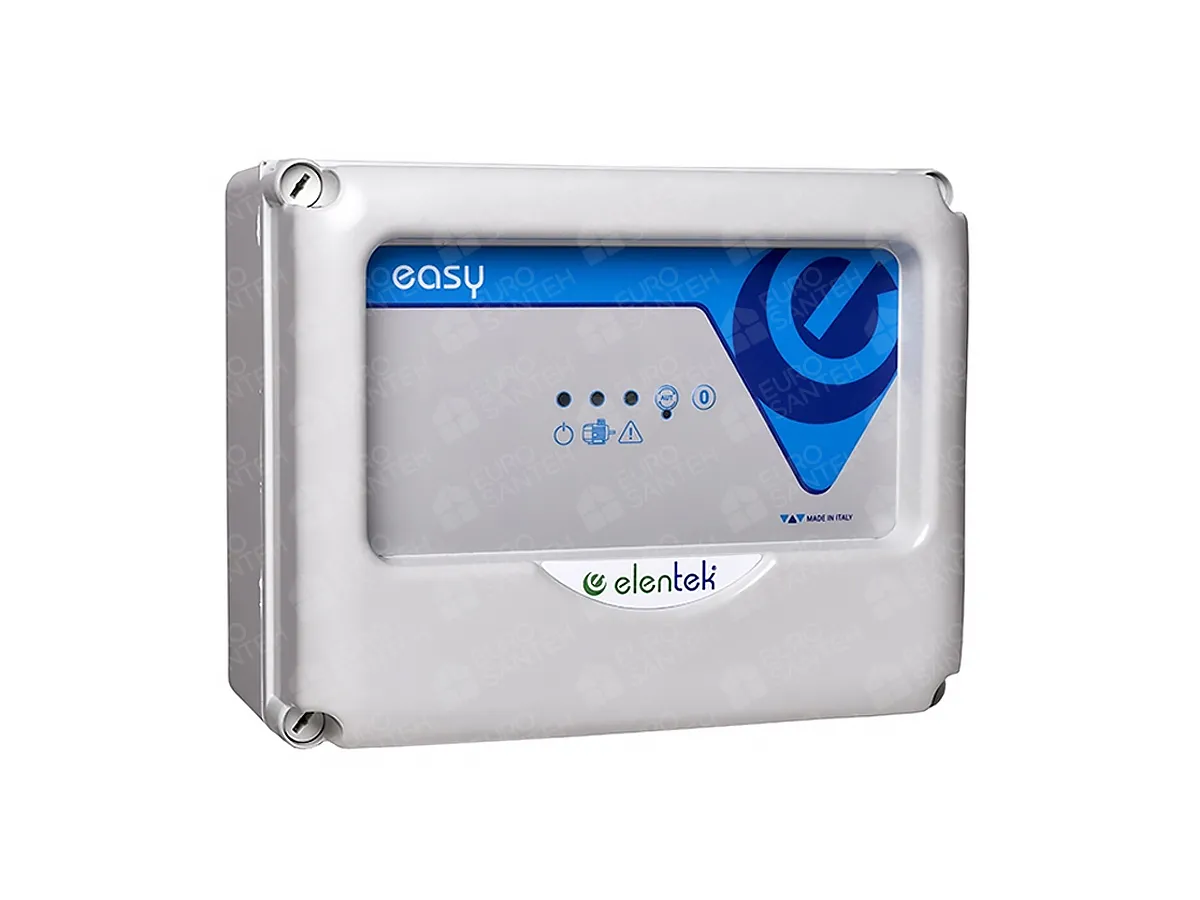

Control panel Elentek EASY 1 MONO / 2.2 kW

Elentek EASY 1 MONO 2.2 kW is a modern single-phase pump control panel designed for automation, protection and remote monitoring of pumping equipment. The panel is extremely easy to install and operate: with a single press of a button, the system automatically learns the motor parameters and becomes ready for use.

Thanks to the built-in Wi-Fi module, EASY creates its own local network — connecting via smartphone allows parameter configuration, status monitoring and real-time notifications.

Key features and construction

▪️Compact housing for installation in confined spaces.
▪️Self-learning system — no manual programming required.
▪️Wi-Fi module for smartphone connection (no internet needed).
▪️LED indicators for operation and alarms.
▪️Modes: Automatic / 0 / Manual.
▪️Supports level sensors, float switches and pressure switches.
▪️Dry-run protection using multiple detection methods.
▪️Preparation for connecting start capacitors (for single-phase motors).

Wi-Fi functions

▪️Interface language selection (EN/IT/FR/ES/DE).
▪️Display of: operating hours, number of starts, motor load.
▪️Electronic minimum-current control (dry-run detection).
▪️Adjustment of delay for overcurrent protection.
▪️Control of motor starting frequency.
▪️Notifications from level sensors.

Alarm signals

▪️overvoltage and undervoltage;
▪️low-level / high-level alarm;
▪️motor overload;
▪️minimum current (dry-run);
▪️electronic board overheating;
▪️contacts for external general alarm output.

Ideal for

▪️single-phase pumps up to 2.2 kW;
▪️water supply and pressure-boosting systems;
▪️drainage and sewage pumps;
▪️irrigation, watering and autonomous pump stations;
▪️private houses, countryside properties, commercial installations.

EASY 1 MONO is a ready-to-use pump control solution that requires no complex setup and provides excellent protection and diagnostic capabilities.
