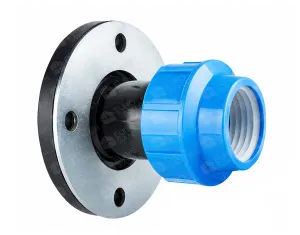

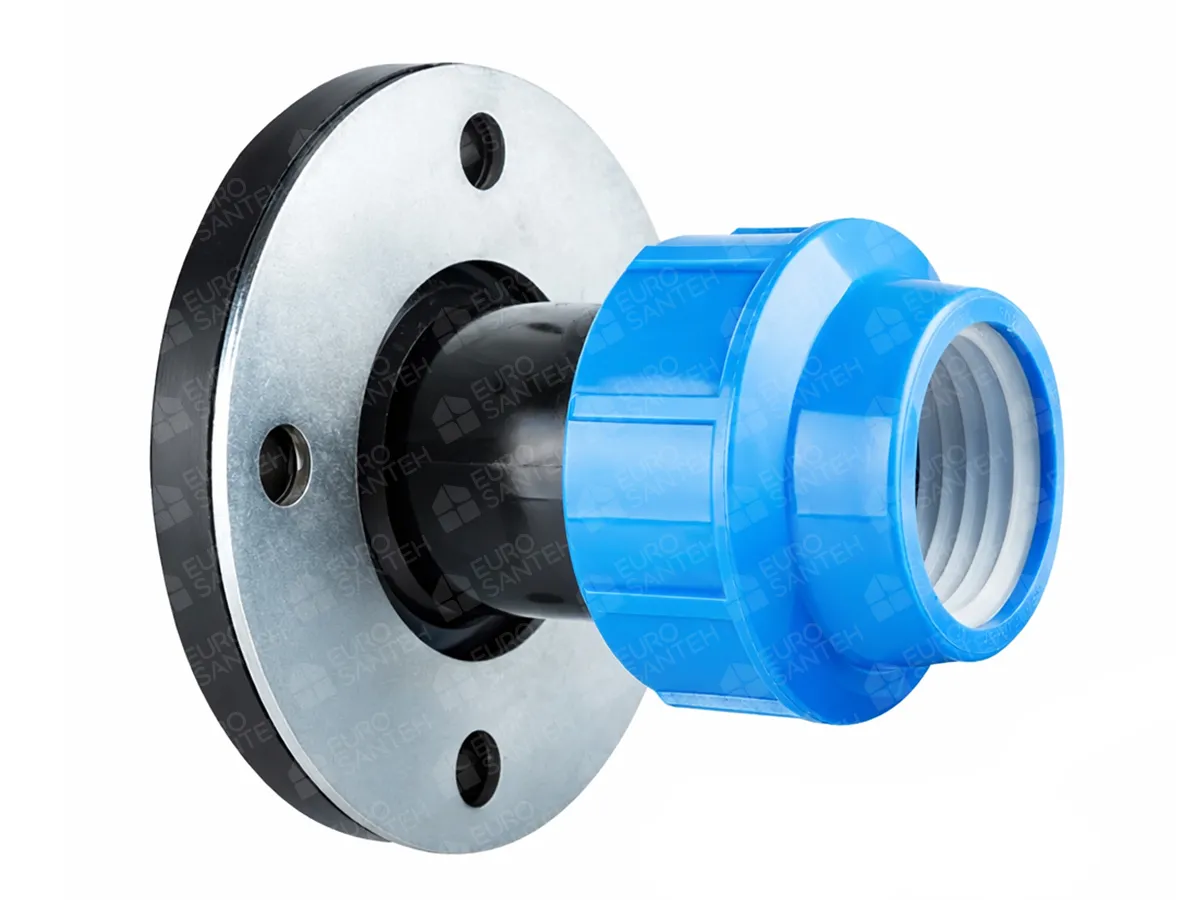

Compression adapter with flange PN 10 bar, d. 50 x 2" (4 hole flange)
Description of Compression Type Flange Adapter
The flange type compression adapter is an integral component in the piping system, providing durability and efficiency in use.
General characteristics:
Type: Compression adapter with flange
Lead Diameter: 2 inches
Input diameter: 50 mm
Pressure: 10 bar
Thread: External
Material: Polylen
The adapter is designed to provide connections in a piping system, ensuring trouble-free fluid flow without loss or risk of leakage.
The importance of diameter and pressure: Inlet and outlet diameter, as well as pressure rating (PN), are key characteristics that determine adapter compatibility and performance in a system. The 50 mm inlet and 2 inch outlet diameter indicate its adaptability to different pipe sizes, while the 10 bar pressure indicates the ability to operate at moderate to high pressures, thereby ensuring productivity and safety in use.
Material Polyline for Strength: Polyline is a material known for its resistance to corrosion and wear, ideal for use in applications involving the transport of liquids. The choice of this material for the compression flange adapter emphasizes the concern for the durability and reliability of the piping system.
In conclusion, the compression style flange adapter provides a reliable and durable solution for connections in a piping system, providing the optimal combination of strength, efficiency and safety to use.
Type: | compression adapter with flange |
Diameter, mm: | 50 |
Diameter, inch: | 1.1/2 |
Body material: | polyethylene |
Color: | Black/Blue |
Maximum working pressure, bar: | 10 |
Temperatura maxima apa, °C: | +40 |
