Reliable automatic station based on single-phase pumps, designed to provide stable pressure boosting in domestic and commercial water supply systems. The Pedrollo CB2-MKm3-5-N operates in automatic mode, adapting to current water consumption needs by activating one or both MKm 3-5 pumps.

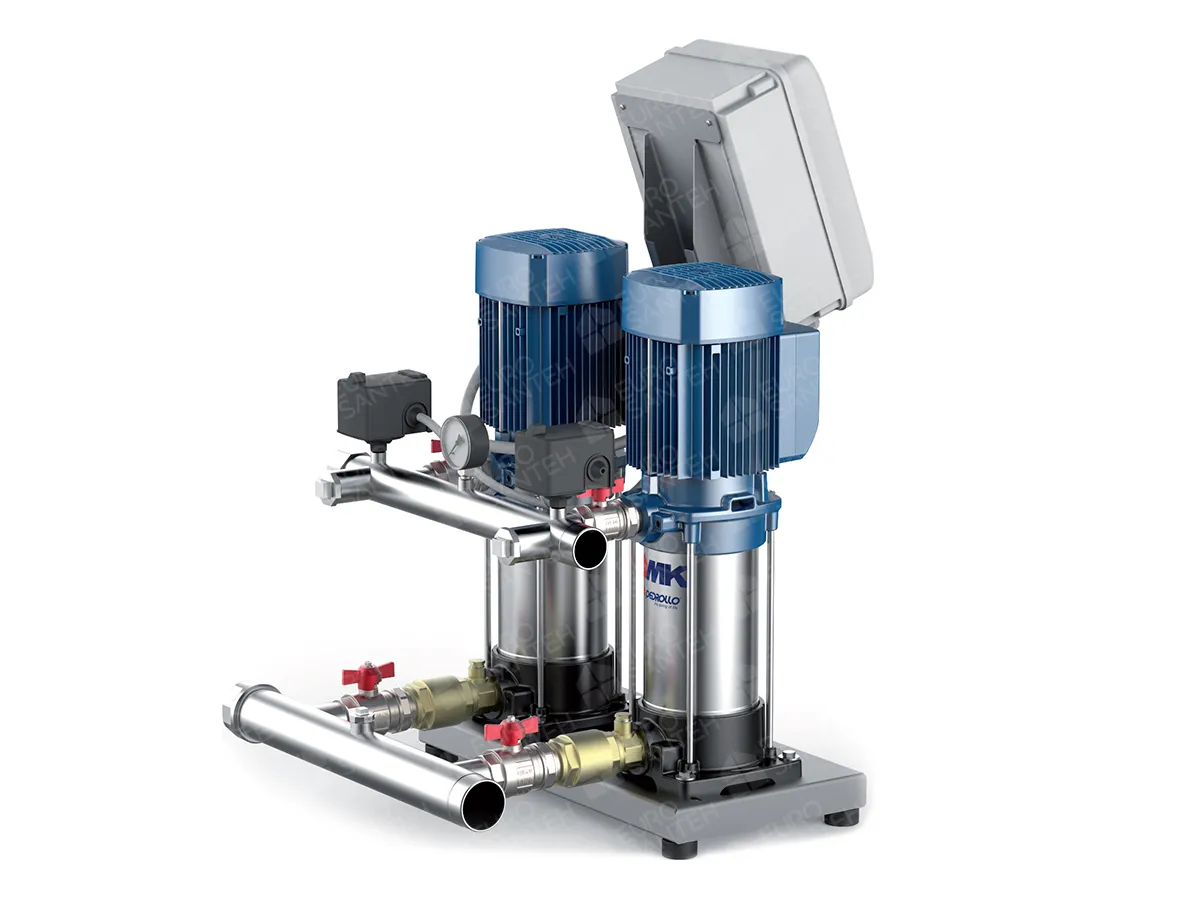

The station is equipped with two vertical centrifugal electric pumps of the MKm series, mounted on a sturdy metal frame along with the inlet and outlet manifold, ball valves, check valves, pressure switches, and pressure gauge. Control is handled via an electronic unit that alternately starts the pumps and protects them from overload, overheating, voltage spikes, and short cycles. The electric motors operate in S1 mode (continuous), making the station suitable for prolonged water demand scenarios.
A special “anti-return” system blocks multiple false starts during short-term water use, reducing equipment wear and saving energy. The single-phase connection simplifies the integration of the station into domestic and agricultural systems without the need for a three-phase power supply.
CB2-MKm3-5-N is used in:
▪️private houses and apartment buildings;
▪️greenhouses and farming enterprises;
▪️hotels, cafés, educational institutions;
▪️irrigation systems, water supply from tanks and wells.
If you are looking for a reliable and energy-efficient system for continuous water delivery, the CB2-MKm3-5-N from Pedrollo offers stable pressure, minimal intervention, and a long service life. It’s an excellent solution for facilities with medium and variable water consumption, where compactness, quiet operation, and reliability are essential.
Tip motor: | Single phase |
Power, kW: | 2,0x1,1 |
Maximum pumping height, m: | 87 |
Maximum depth, m: | 7 |
Weight, kg: | 60,0 |
Technical dimensions, mm: | 530x692x868 |
Body material: | Cast Iron/Stainless Steel |
Water consumption, m³/h: | 9,6 |
Inlet diameter, inch: | 2 |
Outlet diameter, inch: | 1 1/2 |
Installation method: | Vertical |
Coutry of brand: | Italy |
Maximum working pressure, bar: | 10 |
Max. liquid temperature, °C: | +60 |
