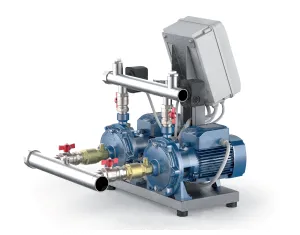

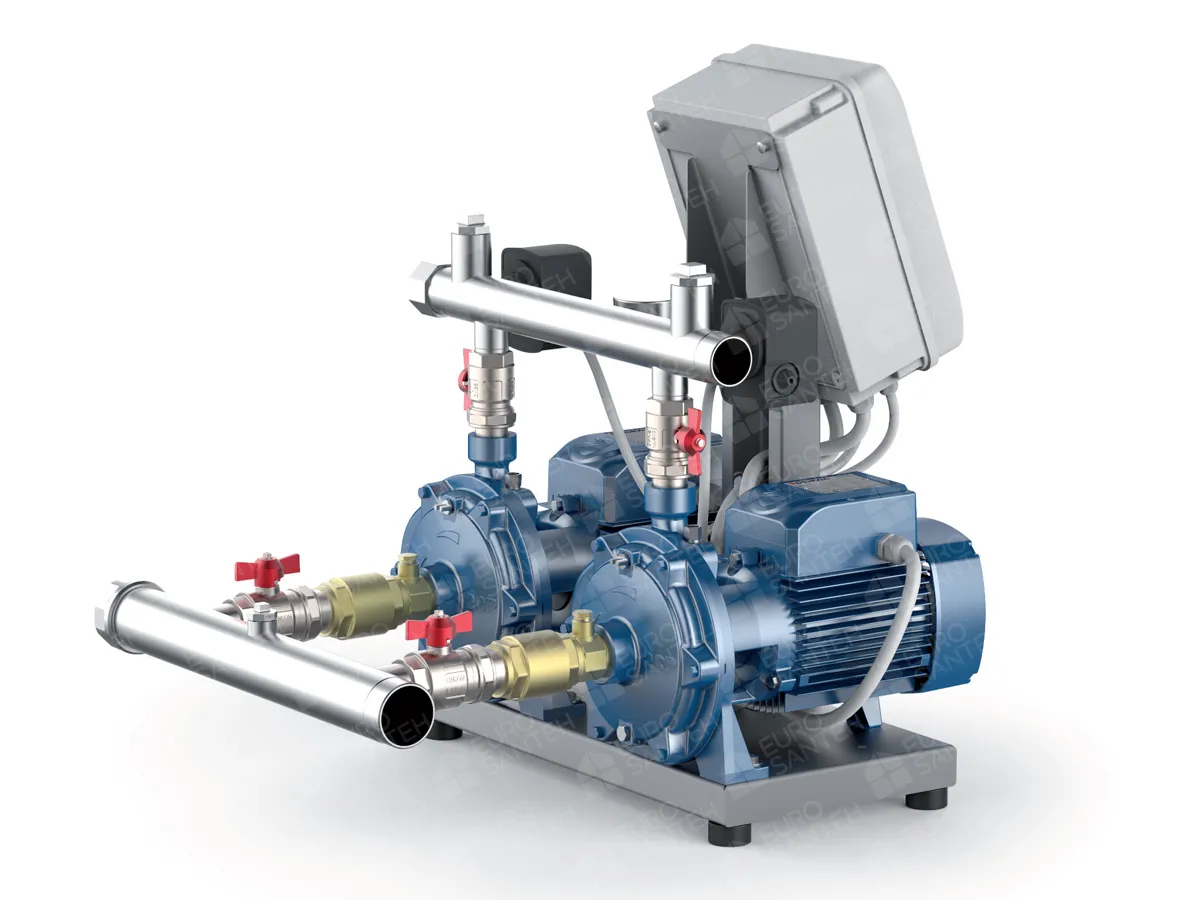

CB2-2CP40-180B Avv. Dir. is a reliable and high-performance automatic pressure boosting station based on two three-phase Pedrollo CP 40/180B pumps and equipped with a Direct Start (Avviamento Diretto) system. The unit is designed for use in complex engineering systems requiring uninterrupted water supply at high volumes, with stable pressure and low energy consumption. Suitable for 24/7 operation on facilities with variable or intensive water usage.
Design Features:
▪️CP 40/180B Centrifugal Pumps:
Efficient and durable pumps with high head and steady flow rate, ideal for municipal, industrial, and agricultural water supply systems.
▪️Reinforced Metal Base Frame:
Robust construction made of corrosion-resistant steel profile. Provides stability even during extended full-load operation.
▪️Hydraulic Assembly Includes:
large-diameter suction and delivery manifolds;
ball valves and check valves on each line;
all components factory-mounted and tested, reducing on-site installation time.
▪️Intelligent QE2M Control System:
automatic pump alternation for extended service life;
anti-bounce logic to prevent frequent starts;
thermal and current overload protection for each pump;
panel lock when accessed by personnel;
two adjustable pressure switches and a manometer for control and regulation of working parameters.
Operating Principle:
The station operates fully automatically: one pump starts when the pressure drops to the set value, the second activates if consumption increases. Pumps alternate operation, ensuring balanced wear and energy efficiency. The Direct Start (Avv. Dir.) system eliminates the need for additional devices, providing fast and reliable activation even under heavy load.
Applications:
▪️Multifunctional buildings, residential complexes, and public utilities;
▪️Commercial and industrial enterprises;
▪️Municipal pumping and irrigation stations;
▪️Farms, drip and sprinkler irrigation systems;
▪️Water treatment, filtration, and cooling stations.
Pedrollo CB2-2CP40-180B Avv. Dir. is a dependable professional solution for facilities where pressure stability and high performance are critical. The unit combines power, durability, and ease of maintenance, delivering consistent water supply even under the most demanding operating conditions.
Tip motor: | three-phase |
Power, kW: | 2,0x5,5 |
Maximum pumping height, m: | 76 |
Maximum depth, m: | 7 |
Weight, kg: | 178,0 |
Technical dimensions, mm: | 700x1056x688 |
Body material: | Fonta |
Water consumption, m³/h: | 48,0 |
Inlet diameter, inch: | 4 |
Outlet diameter, inch: | 3 |
Installation method: | Vertical |
Coutry of brand: | Italy |
Maximum working pressure, bar: | 10 |
Max. liquid temperature, °C: | +55 |
