Pressure Maintenance Automatic Station CB2-MK3-4-N.

1
63 677 mdl
50 032 mdl
visa logo master card logo
Installment is possible for physical and legal entities
Mounting services
Choose your installation team arrow down
Eduard and Lameh
Installation crew "Eduard and Lameh"
Radion and Petru
Installation crew "Radion and Petru"
Shipping and payment arrow down
Free delivery throughout Republic of Moldova
Payment by card is possible:
visa logo master card logo maib gamma maib liber starcard
Installment plan for 0% for individuals and legal entities
download Technical characteristics
Product Description

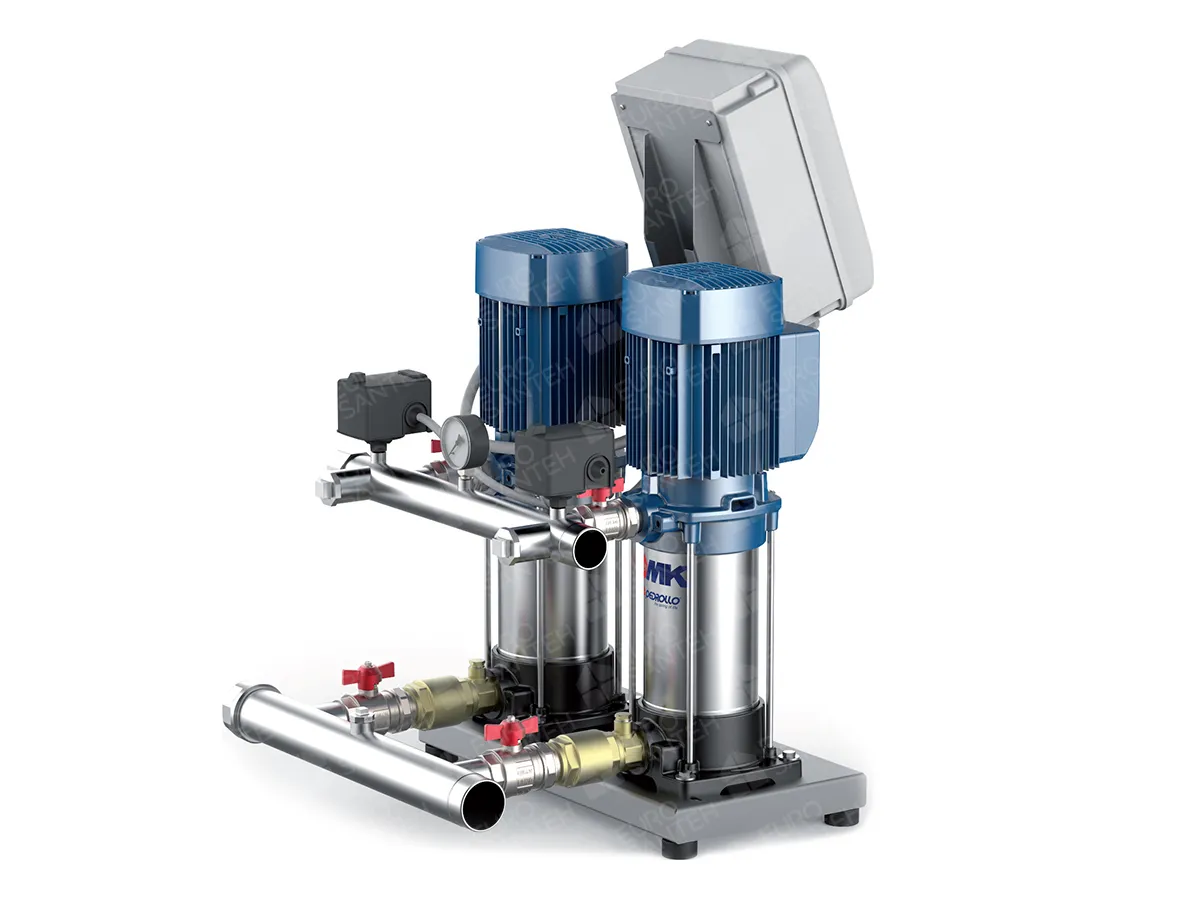

Professional equipment for stable water supply and pressure in industrial and municipal systems. The COMBIPRESS CB2-MK3-4-N station is equipped with two three-phase Pedrollo MK 3-4 series pumps, designed for continuous operation with high performance and resistance to loads.

The model operates in automatic mode, maintaining stable water pressure in the system regardless of consumption changes. Thanks to the intelligent control system, the pumps start alternately, evenly distributing wear and saving energy. In the event of a sharp increase in water demand, both pumps can operate simultaneously. This scheme is especially effective for buildings with variable load—such as during working hours and peak consumption periods.

The station includes a metal frame with pre-installed inlet and outlet manifolds, pressure gauge, two pressure switches, check valves, and ball valves. Operation is controlled via an electronic unit with overload protection, locking function, anti-cycling mode, and low-voltage shutdown. All components are designed for intensive use and comply with international standards. MK 3-4 series pumps offer high reliability, durability under prolonged load, and the ability to pump large volumes of water at stable pressure.

The station is suitable for high-rise buildings, industrial complexes, water filtration stations, irrigation systems, hotel complexes, and medical institutions. It can be used to supply water from storage tanks, municipal networks, or wells. Maximum efficiency is achieved when used in facilities with high and variable water consumption. The installation should be located in a technical room or an area protected from weather conditions.

Pedrollo CB2-MK3-4-N is a reliable professional station for continuous high-pressure water supply. It ensures stable plumbing operation even when the main source is unstable. Ideally suited for facilities where quality, stability, and equipment protection are crucial.

Product characteristics arrow down
Tip motor: three-phase
Power, kW: 2,0x1,1
Maximum pumping height, m: 70
Maximum depth, m: 7
Noise level, dB: 75
Weight, kg: 59,0
Technical dimensions, mm: 530x692x868
Body material: Cast Iron/Stainless Steel
Water consumption, m³/h: 9,6
Inlet diameter, inch: 2
Outlet diameter, inch: 1 1/2
Installation method: Vertical
Coutry of brand: Italy
Maximum working pressure, bar: 10
Max. liquid temperature, °C: +55
Please clarify the specifications with the managers, as they may differ from the actual ones
