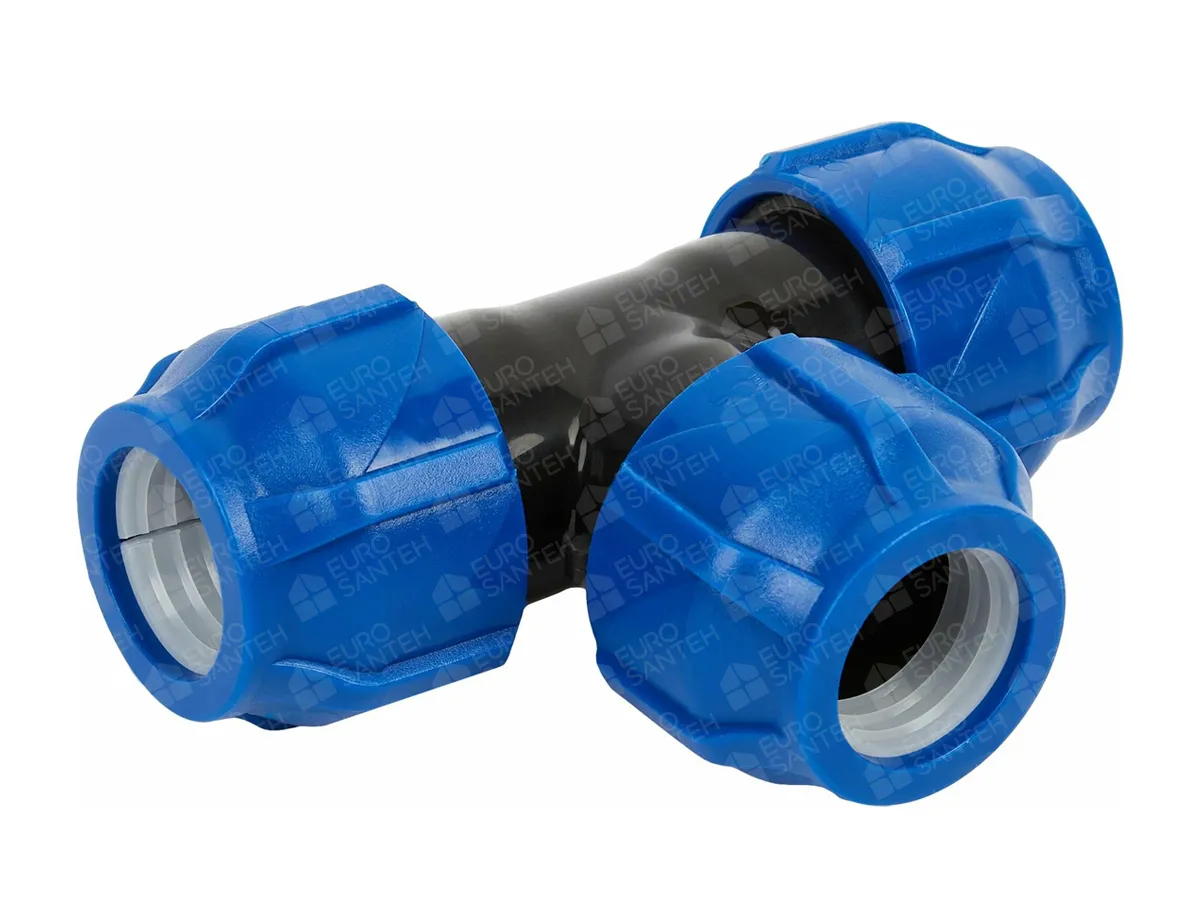

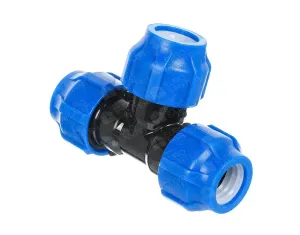

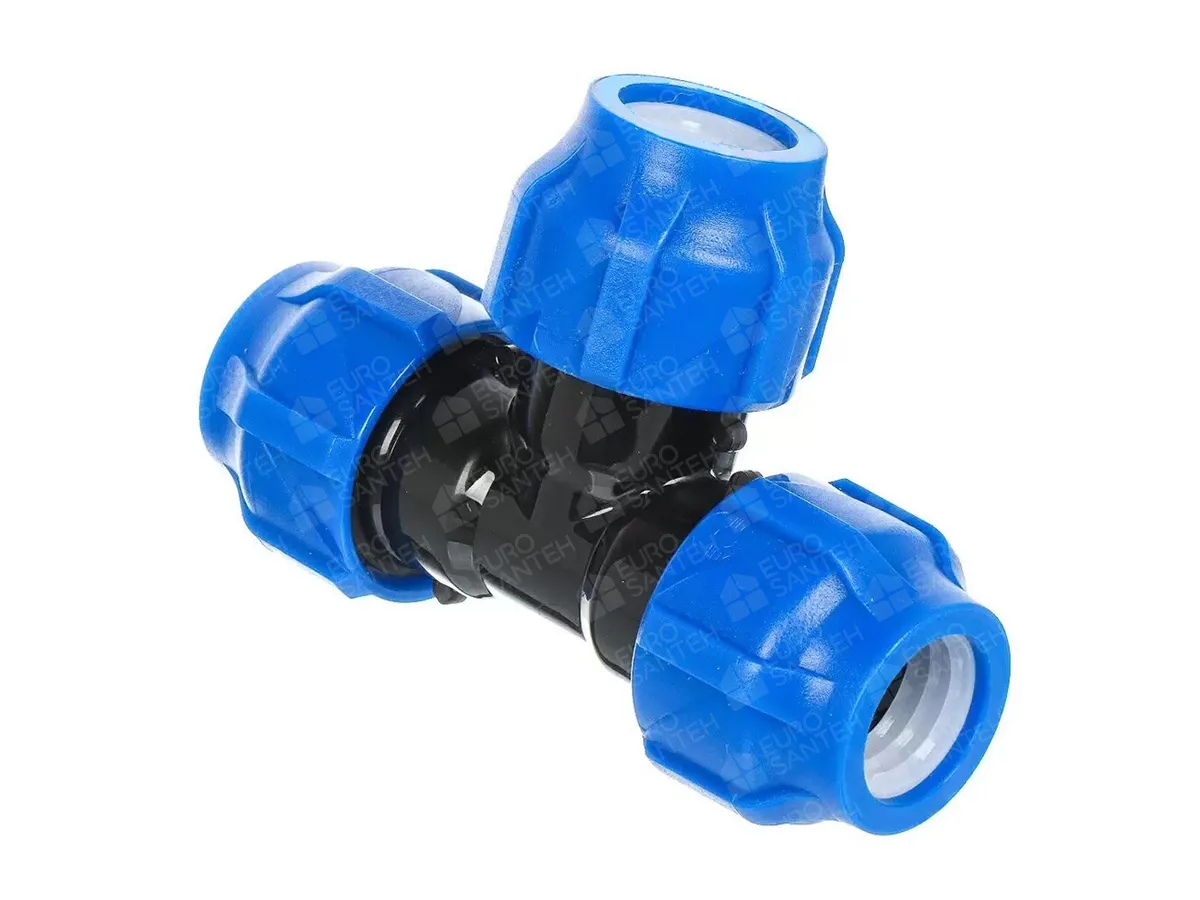

Compression tee PN 6 bar, d. 50 x 50 x 50

Polyethylene compression tee PN 6 bar, 50×50×50 is an equal-bore fitting for branching HDPE (PE) pipelines when all three lines have the same diameter. The side outlet is formed at 90° to the main line, making this tee ideal for adding branches to additional circuits: a separate irrigation line, a connection to a distribution node, on-site routing, or expanding an existing network without rebuilding the entire run.

The 50 mm size is often chosen for main pipeline sections where a steady flow and minimal losses at the branch are important. A compression tee helps you assemble a neat junction quickly and, if needed, adjust the pipeline layout just as fast.

Why choose an HDPE compression tee

The fitting is made from low-pressure polyethylene, so it:

is corrosion-free and requires no protective coatings;

is chemically inert — resistant to many substances found in water and technical media;

stays reliable over long-term use, including humid conditions and outdoor installation.

The PN 6 bar rating makes it suitable for standard water supply and technical systems where dependable leak-tightness is needed without complex installation work.

Benefits for installation and maintenance

Fast installation without welding: no fusion/electrofusion tools or special equipment needed.

Leak-tight connection thanks to threaded assembly and subsequent compression.

Demountable design: can be assembled/disassembled multiple times — convenient for repairs, seasonal shutdown, or upgrades.

Straightforward installation process: minimal steps, strong results.

User-friendly shape for trenches, chambers, and tight spaces.

How to install (2 steps)

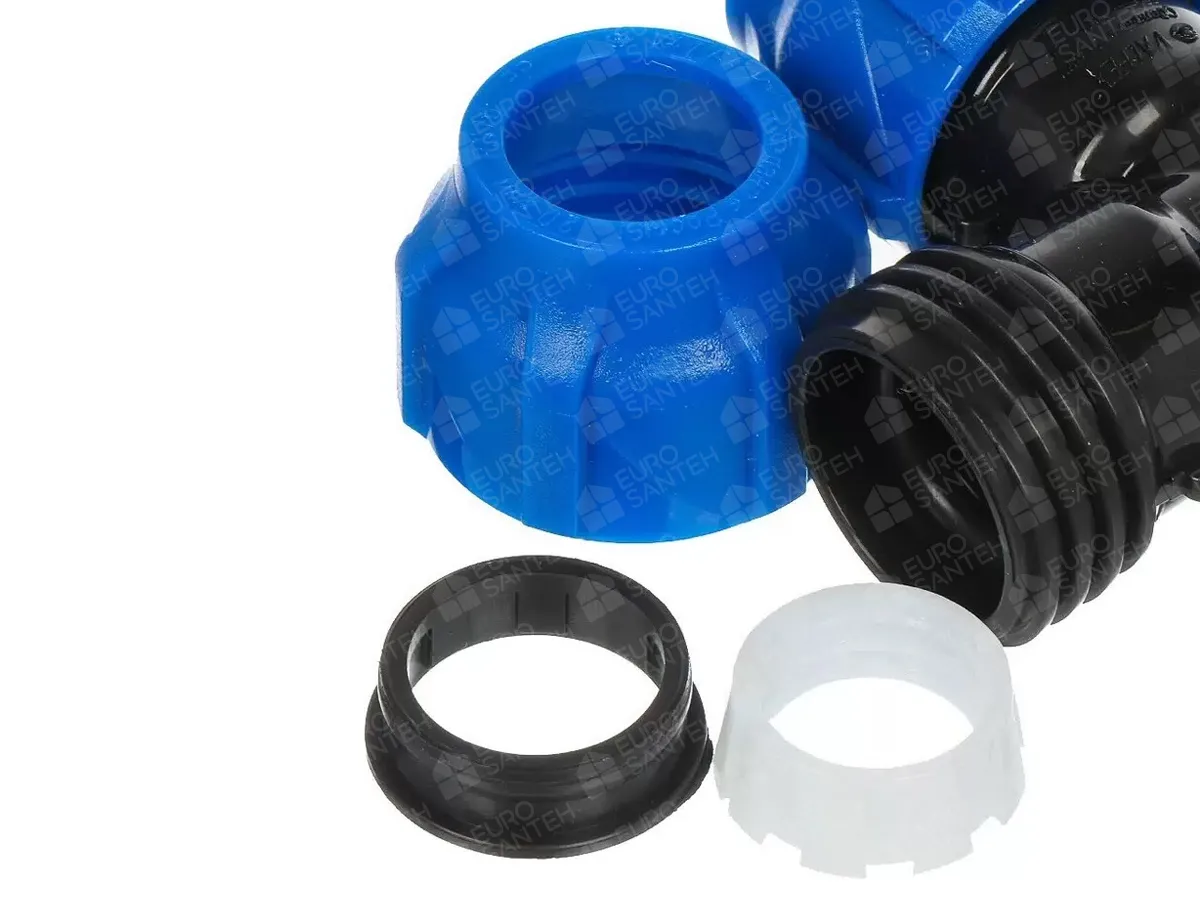

Insert the HDPE pipe into the fitting seat until it stops and make sure it sits straight.

Tighten the nut clockwise — it compresses the joint and ensures a secure grip.

Where the 50×50×50 size is especially useful

If you need an HDPE 50 mm compression tee for a clean main-line branch without welding, the 50×50×50 PN 6 model is a practical option. It enables quick, leak-tight assembly with the advantage of future disassembly — especially valuable where the network is frequently expanded or modified.
