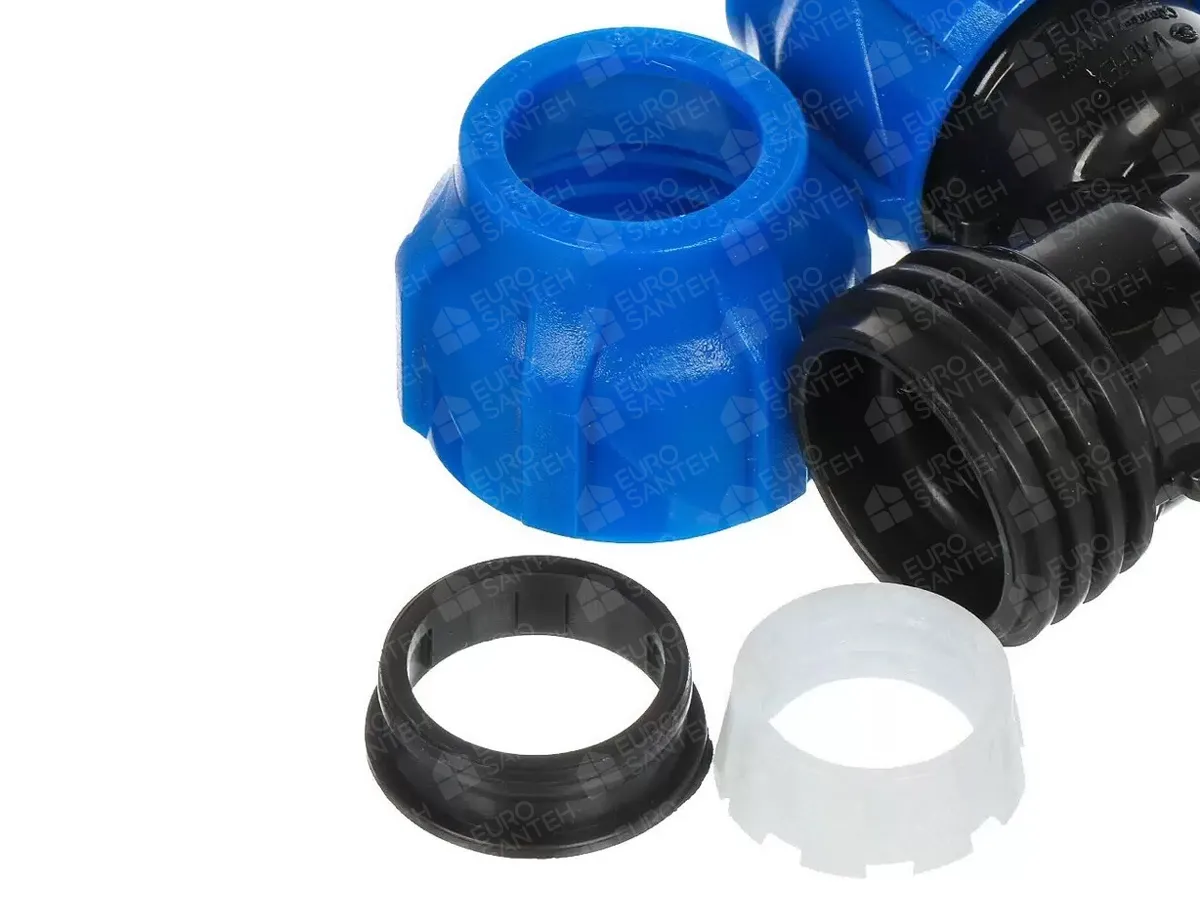

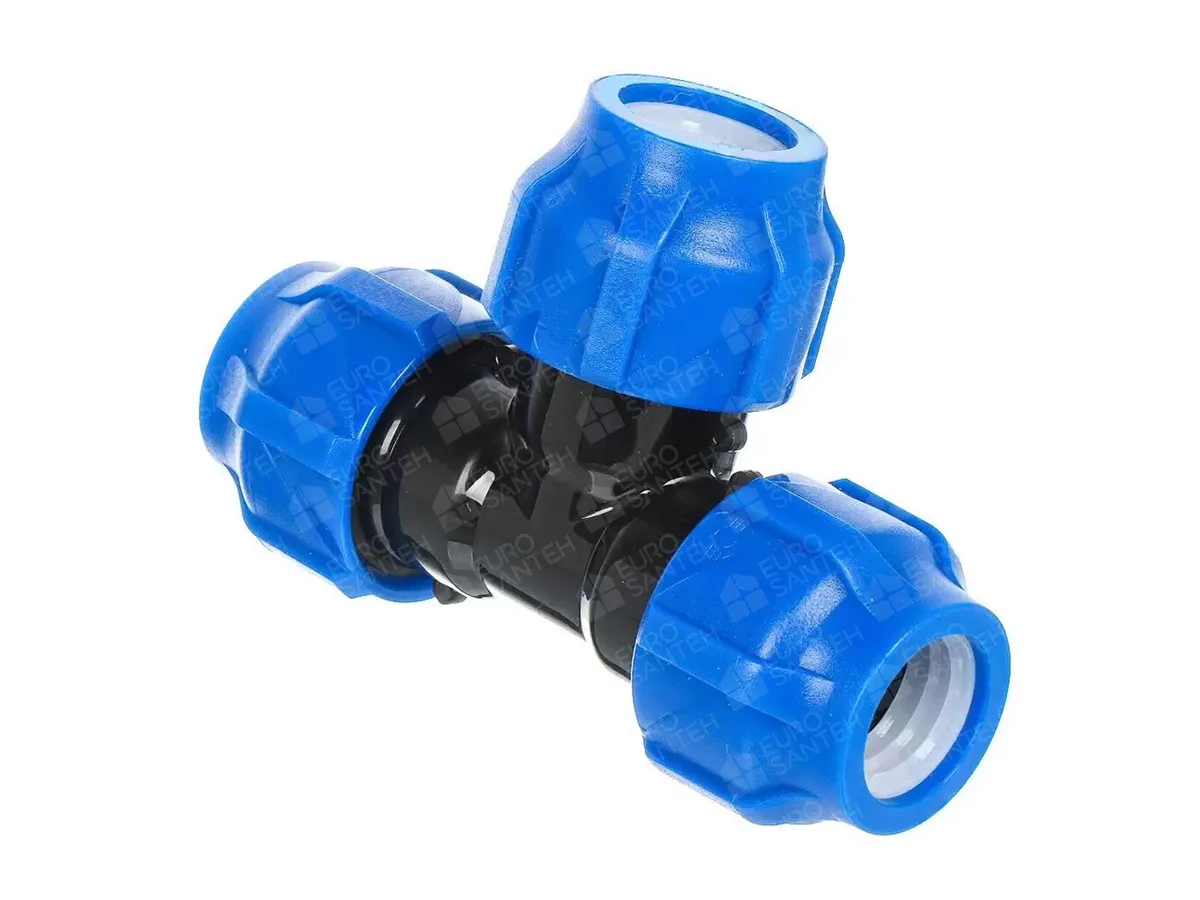

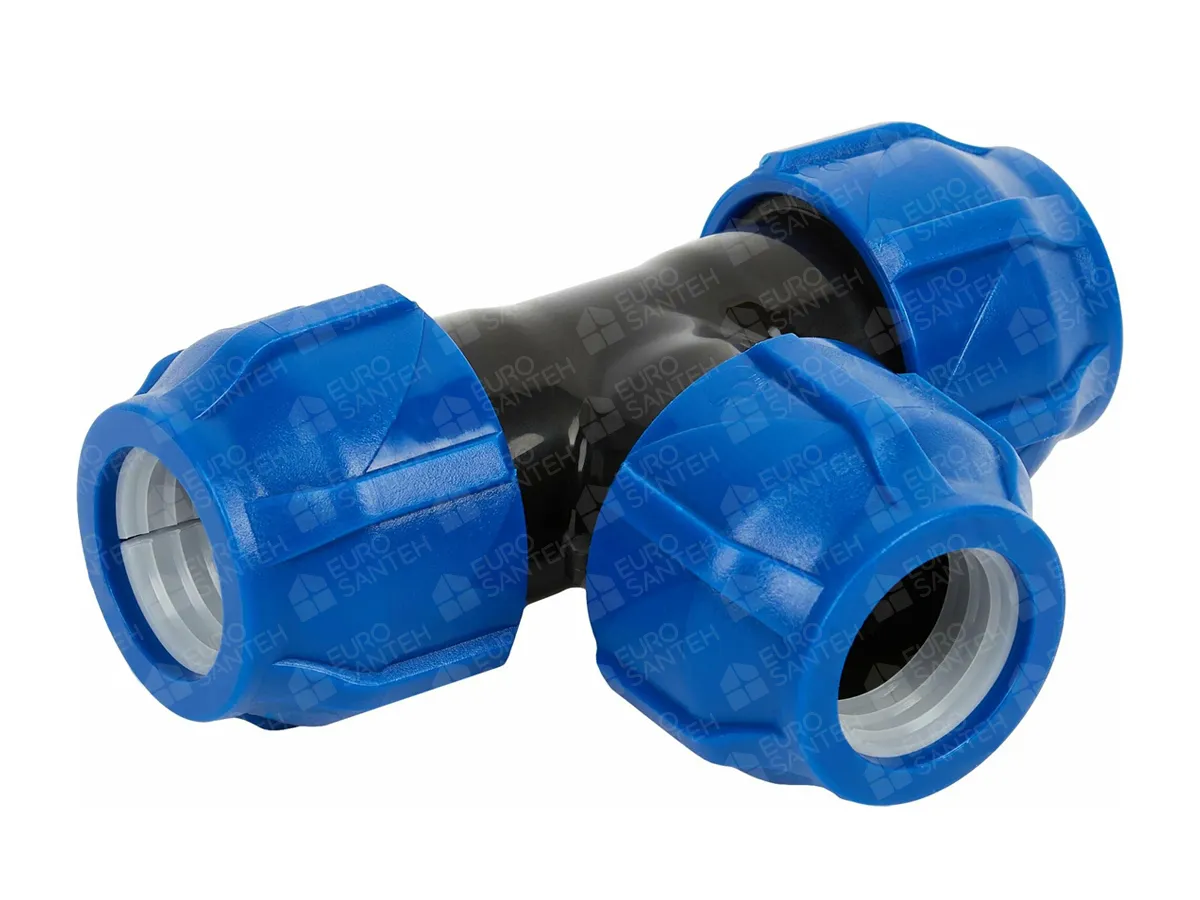

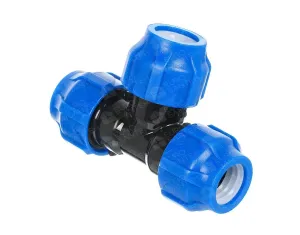

Compression tee PN 6 bar, d. 25 x 25 x 25

The 25×25×25 compression (clamp) tee is an equal-through fitting for connecting three sections of HDPE pipe of the same diameter, where one branch is taken off perpendicular to the other two. It is used to branch pipelines in water supply systems and technical networks—when you need to add an extra branch, connect a separate line, or neatly split the flow into two directions without welding.

Material and durability

The tee is made of high-density polyethylene (HDPE), therefore it:

• is corrosion-resistant and does not seize at connection points;
• is chemically inert—does not react with most substances found in water and technical media;
• maintains its geometry and strength over long-term operation.

The nominal pressure rating PN 6 bar makes the fitting optimal for typical domestic and engineering applications where a reliable, stable connection is required.

Benefits of the HDPE compression tee

Fast installation without soldering, welding, or special tools.
Leak-tightness is achieved through threaded assembly and subsequent compression.
Multiple assembly/disassembly cycles—convenient for repairs, relocating connection points, or upgrading the network.
Simple design and straightforward installation even in field conditions.
Ergonomic shape makes installation easier in manholes, niches, and confined spaces.

How installation is performed

• Insert the d 25 mm HDPE pipe into the fitting sleeve until it stops and secure it.
• Tighten the nut clockwise—it will clamp the pipe and ensure a tight fit.

Where it is especially useful

The 25×25×25 tee is chosen when you need to maintain the same flow capacity in all three directions and obtain a neat, reliable branching joint for 25 mm HDPE pipes—quickly, leak-tight, and without unnecessary installation costs.
