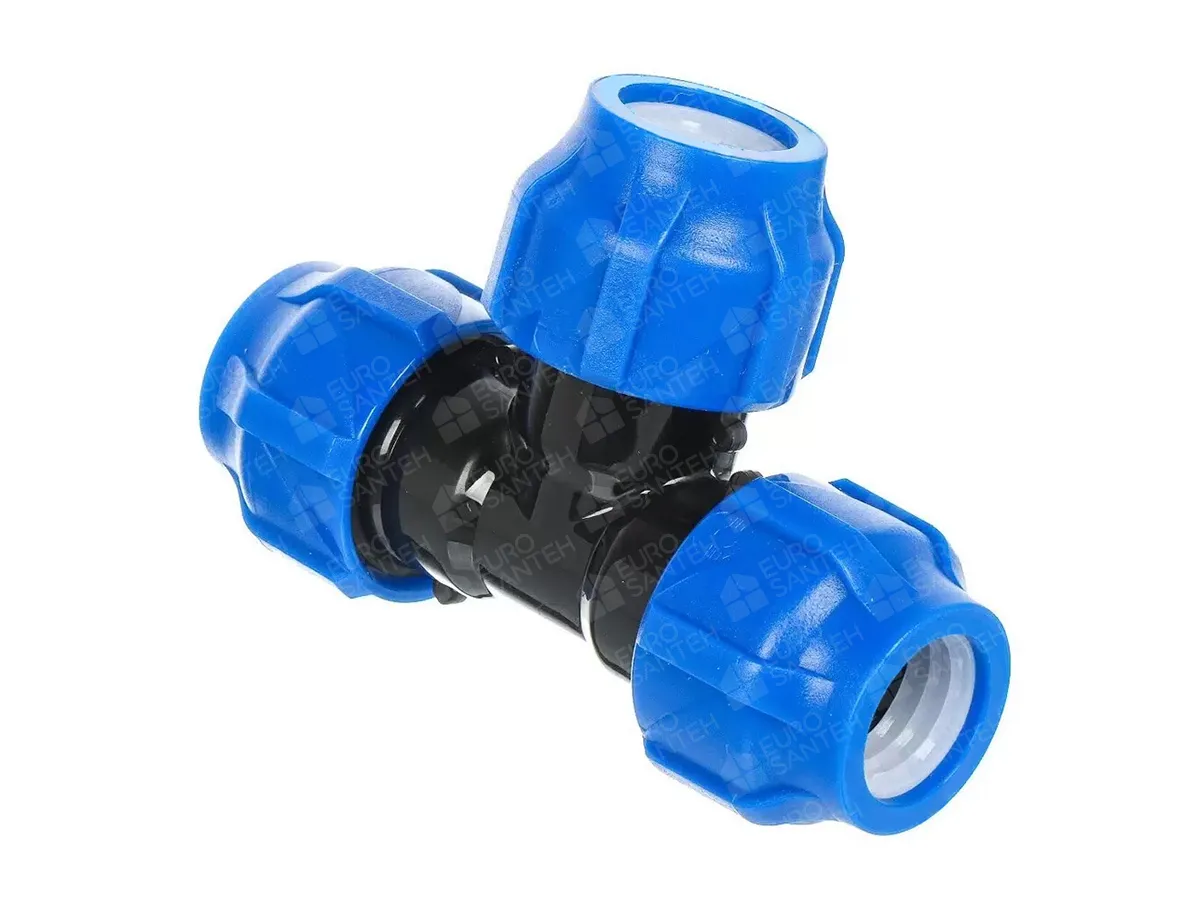

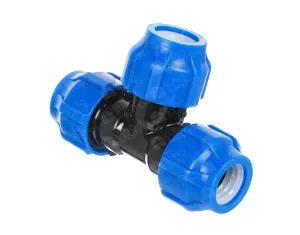

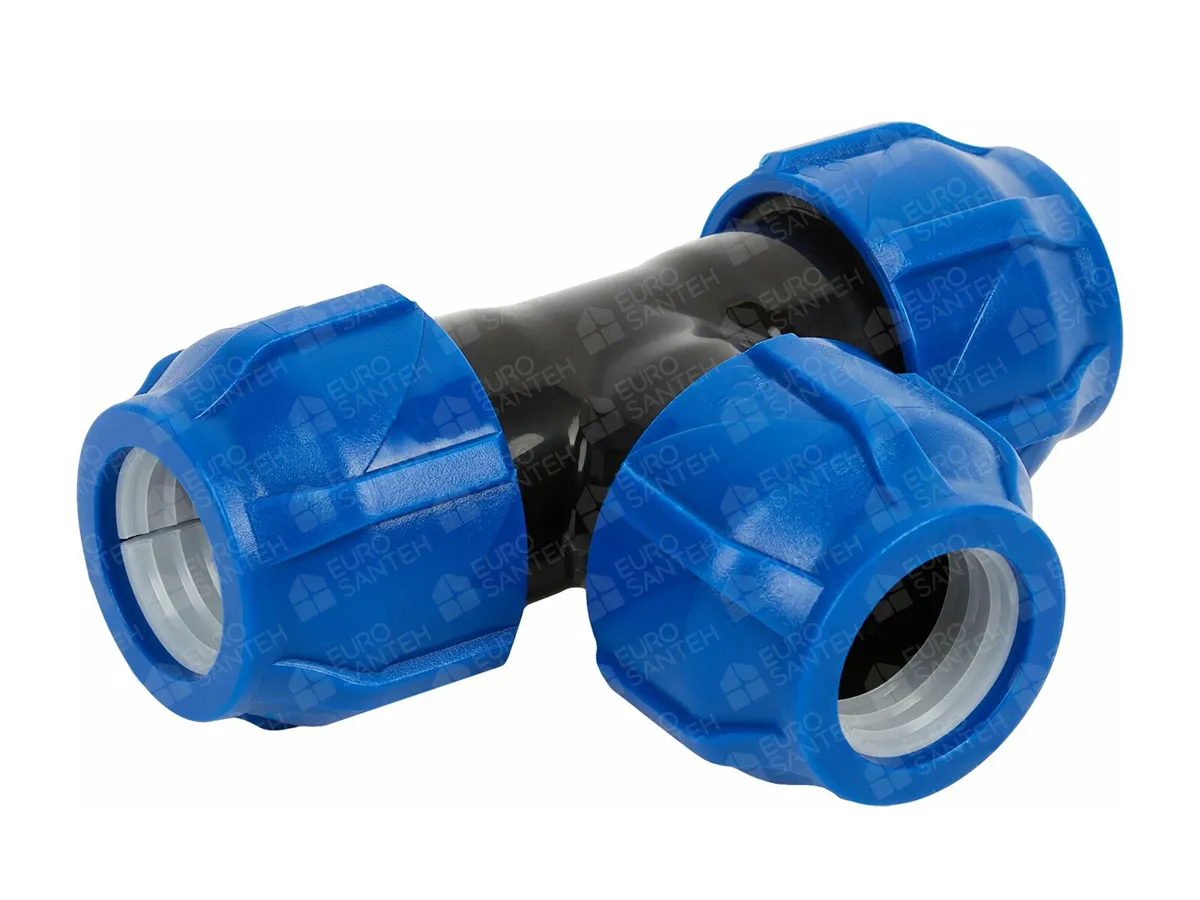

Compression tee PN 6 bar, d. 20 x 20 x 20

The 20×20×20 compression tee is designed to connect three sections of polyethylene pipe of the same diameter, with the side outlet installed perpendicular to the main line. This equal-through tee is used when you need to create a branch quickly without welding or specialized equipment—for example, to add an additional line or to make a branch off a main pipeline.

Material and durability

The fitting is made of high-density polyethylene (HDPE), so it is corrosion-resistant and retains its performance for a long service life. The material does not react with most chemicals, making the tee suitable for water supply and technical systems. The nominal pressure rating PN 6 bar is intended for typical operating conditions.

Benefits of the compression tee

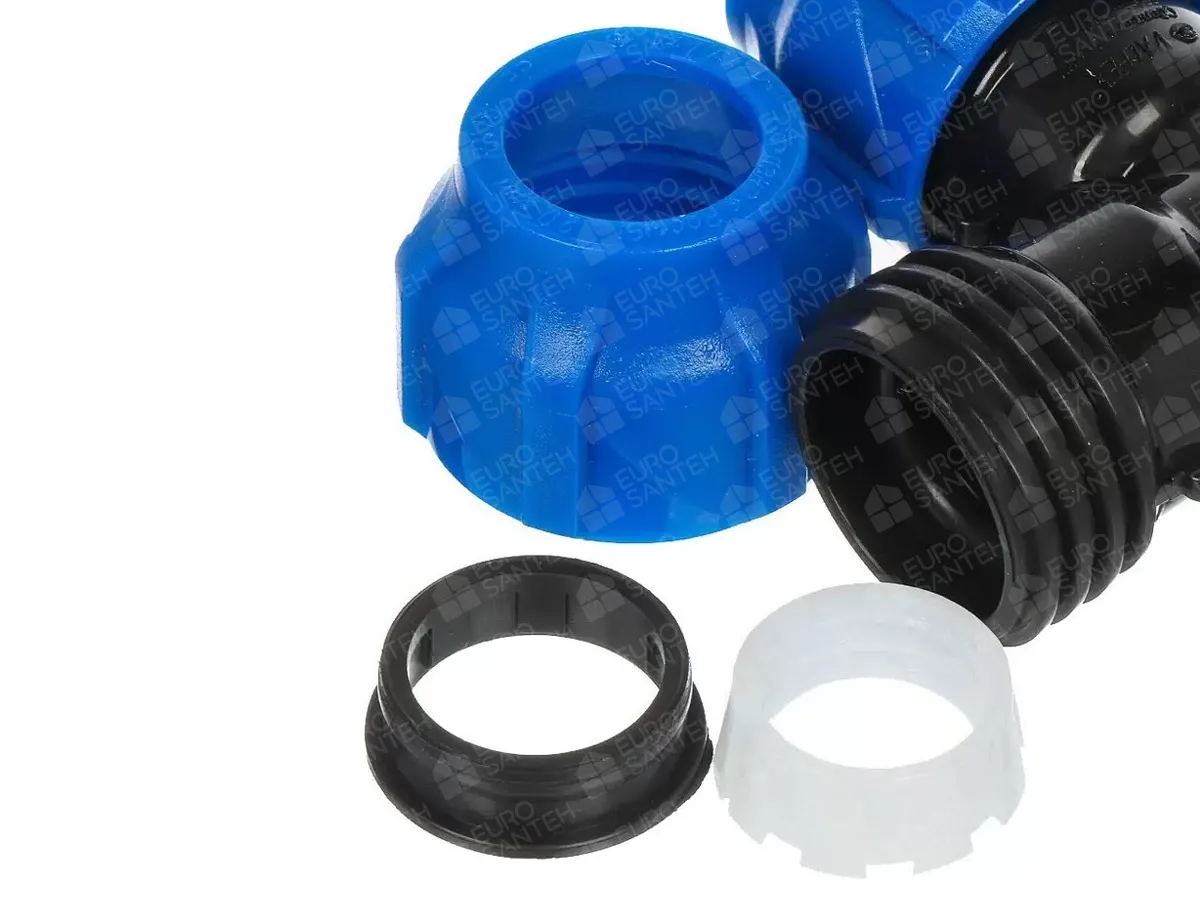

• Leak-tight connection thanks to threaded assembly and subsequent compression.
• Fast installation without tools or additional accessories.
• Multiple assembly/disassembly cycles—convenient for repair and system upgrades.
• Ergonomic shape simplifies installation, including in tight spaces.

How installation is performed

• Insert the HDPE pipe into the fitting sleeve until it stops and secure it.
• Tighten the nut clockwise—it will compress the joint and ensure a snug fit.

Technical specifications

• Type: compression (clamp) tee, equal-through
• Diameter: d 20×20×20 mm
• Working pressure: PN 6 bar
• Purpose: branching HDPE pipes of the same diameter

Where it is especially convenient

The 20×20×20 size is chosen for 20 mm HDPE lines when it is important to maintain the same flow capacity in all three directions and obtain a neat, reliable branching joint.
