TESY EV 160L 15S 60 Z PS is a powerful and versatile 160-liter buffer tank designed to optimize the performance of heating and domestic hot water systems. It is ideally suited for homes with high heat consumption, heat accumulation from multiple sources, and improved system stability.
Reinforced steel tank with enamel coating
The inner surface of the tank is covered with high-quality glass-ceramic enamel that meets all European standards, providing:
▪️ long-term protection against corrosion,
▪️ prevention of rust formation,
▪️ safe contact with water at high temperatures.
Energy-efficient insulation — 50 mm
Thanks to dense polyurethane insulation:
▪️ heat losses are significantly reduced,
▪️ the system retains hot water for a longer time,
▪️ energy efficiency class B is achieved.

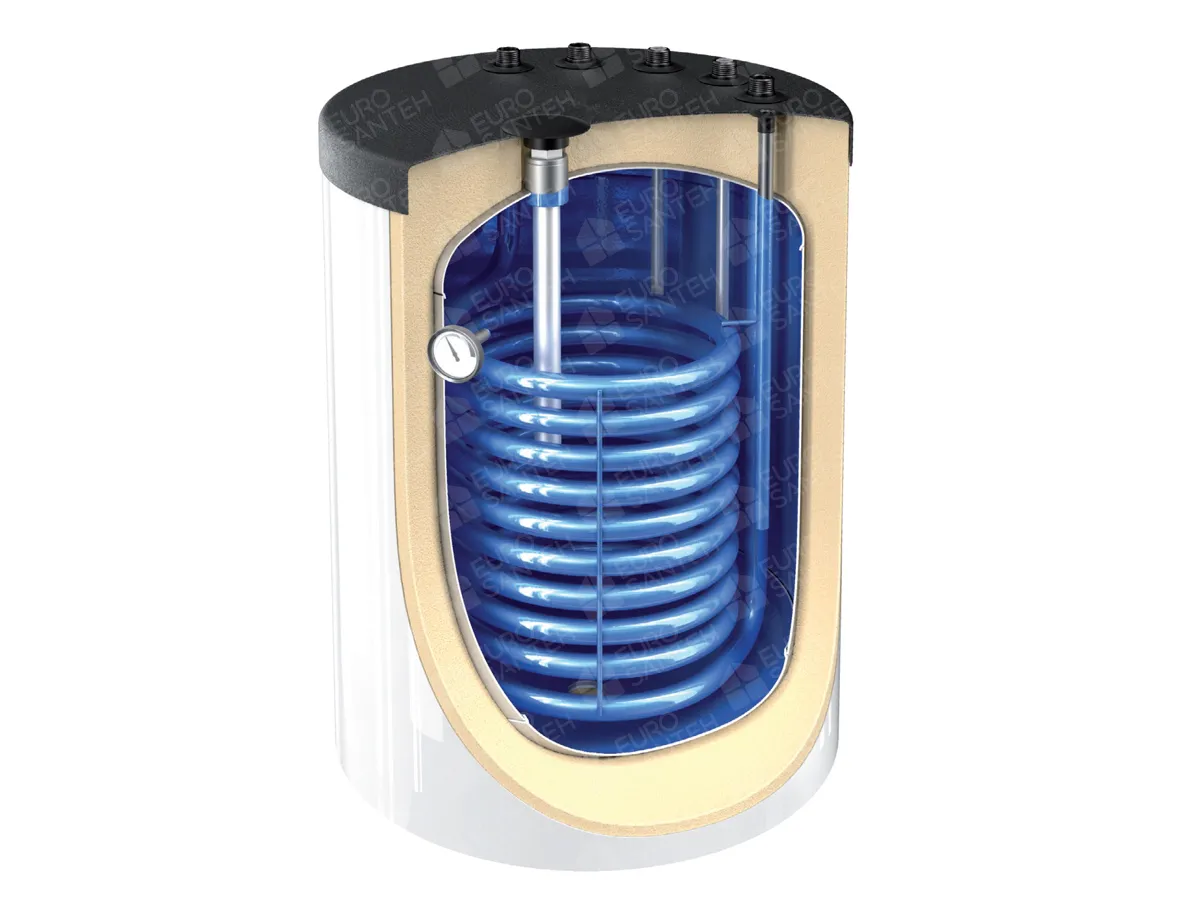

High-performance heat exchanger
The coil is designed for operation with powerful boilers and heat pumps. It ensures efficient heat transfer, fast heating of the buffer volume, and stable temperature even under variable heat demand.
Thought-out design for easy installation
▪️ Compact dimensions allow installation under a wall-mounted boiler.
▪️ All hydraulic connections are located at the top — speeding up installation.
▪️ Sleeves for temperature sensors and recirculation circuits are provided.
▪️ Optional installation of a 3 kW electric heater for backup or combined heating.
Enhanced anti-corrosion protection
The large magnesium anode located at the top provides long-lasting protection against electrochemical corrosion inside the tank.
Additional engineering advantages
▪️ large service flange for easy cleaning and maintenance,
▪️ drain outlet for convenient water removal,
▪️ durable PVC casing resistant to impacts and scratches,
▪️ completely safe and noiseless operation.
Where such tanks are used:
▪️ homes of 100–250 m²,
▪️ heating systems with radiators and underfloor heating,
▪️ heat pump + boiler hybrid systems,
▪️ high-performance DHW systems,
▪️ stabilization and improvement of heating-cycle efficiency.
| Volume, l: | 160 |
| Maximum pressure, bar: | 8 |
| Heating method: | Indirect |
| Energy efficiency class: | A |
| Control type: | Mechanic |
| Magnesium anode: | Yes |
| Height, mm: | 1167 |
| Width, mm: | 600 |
| Installation method: | Vertical |
| Destination: | Water heating |
| Inner tank coating: | Enamel |
| Heat exchanger capacity S1, l: | 9,5 |
| Coutry of brand: | Bulgaria |
| Heat exchanger surface, m2: | 1,5 |
| Weight, kg: | 68,0 |
| Safety valve: | Yes |
