Product code: 147012
brand title

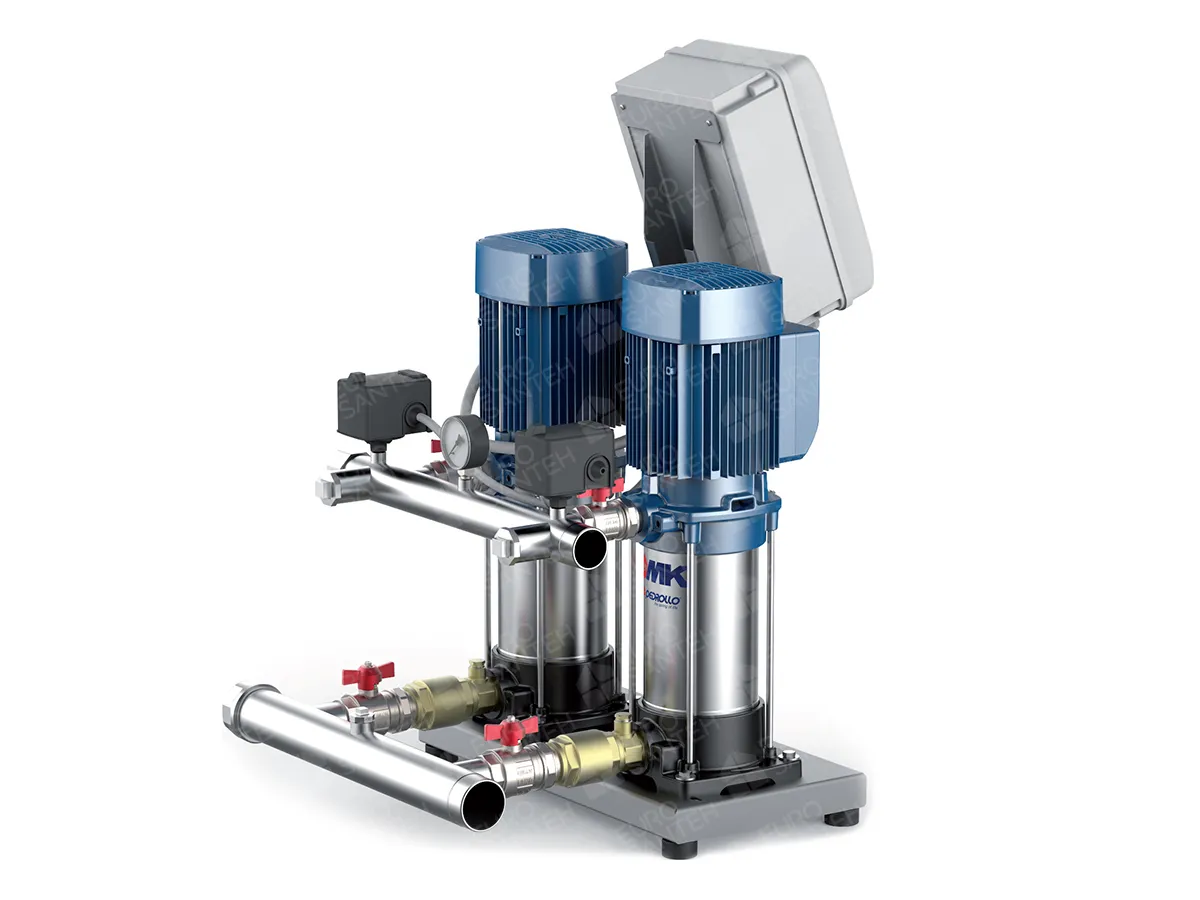

Automatic pressure maintenance station CB2-MKm5-5-N

1
59 718 mdl
46 921 mdl
visa logo master card logo
Installment is possible for physical and legal entities
Mounting services
Choose your installation team arrow down
Eduard and Lameh
Installation crew "Eduard and Lameh"
Radion and Petru
Installation crew "Radion and Petru"
Shipping and payment arrow down
Free delivery throughout Republic of Moldova
Payment by card is possible:
visa logo master card logo maib gamma maib liber starcard
Installment plan for 0% for individuals and legal entities
download Technical characteristics
Product Description

The CB2-MKm5-5-N is an upgraded version of the single-phase station equipped with higher-power MKm 5-5 pumps, delivering increased head and flow performance. This solution is designed for supplying water to buildings with multiple bathrooms or facilities where water consumption varies significantly.

The station activates the pumps alternately or simultaneously depending on the system pressure. The electronic controller manages startup, alternates the pumps, monitors pressure, and protects against false starts and overheating. With a single-phase power connection (230 V), the station is ideally suited for private homes and facilities without access to a three-phase network.

The construction includes everything needed: pumps, metal frame, manifolds, valves, pressure switches, and pressure gauge. The system is fully prepared for installation and operation.

Applications:

▪️Residential homes, townhouses;
▪️Offices, cafés, mini-hotels;
▪️Irrigation systems, storage tank complexes;
▪️Agriculture and greenhouse installations.

The CB2-MKm5-5-N is a reliable choice for users who require higher performance with single-phase electricity. A powerful solution among single-phase stations, it ensures stable operation under high water consumption. It's the optimal choice for private facilities with high water demands where a three-phase network is not available.

At Eurosanteh.md you get:

▪️ Certified products with warranty;
▪️ Assistance with installation and technical support;
▪️ Precise delivery times and in-stock availability;
▪️ Discounts for bulk purchases or long-term partnerships;
▪️ Full-service support — from selection to commissioning.

Trust Eurosanteh.md — experts in engineering solutions for home and business.

Product characteristics arrow down
Tip motor: Single phase
Power, kW: 2,0x1,1
Maximum pumping height, m: 70
Maximum depth, m: 7
Weight, kg: 59,0
Technical dimensions, mm: 530x692x868
Body material: Cast Iron/Stainless Steel
Water consumption, m³/h: 14,4
Inlet diameter, inch: 2
Outlet diameter, inch: 1 1/2
Installation method: Vertical
Coutry of brand: Italy
Maximum working pressure, bar: 11
Max. liquid temperature, °C: +60
Please clarify the specifications with the managers, as they may differ from the actual ones
