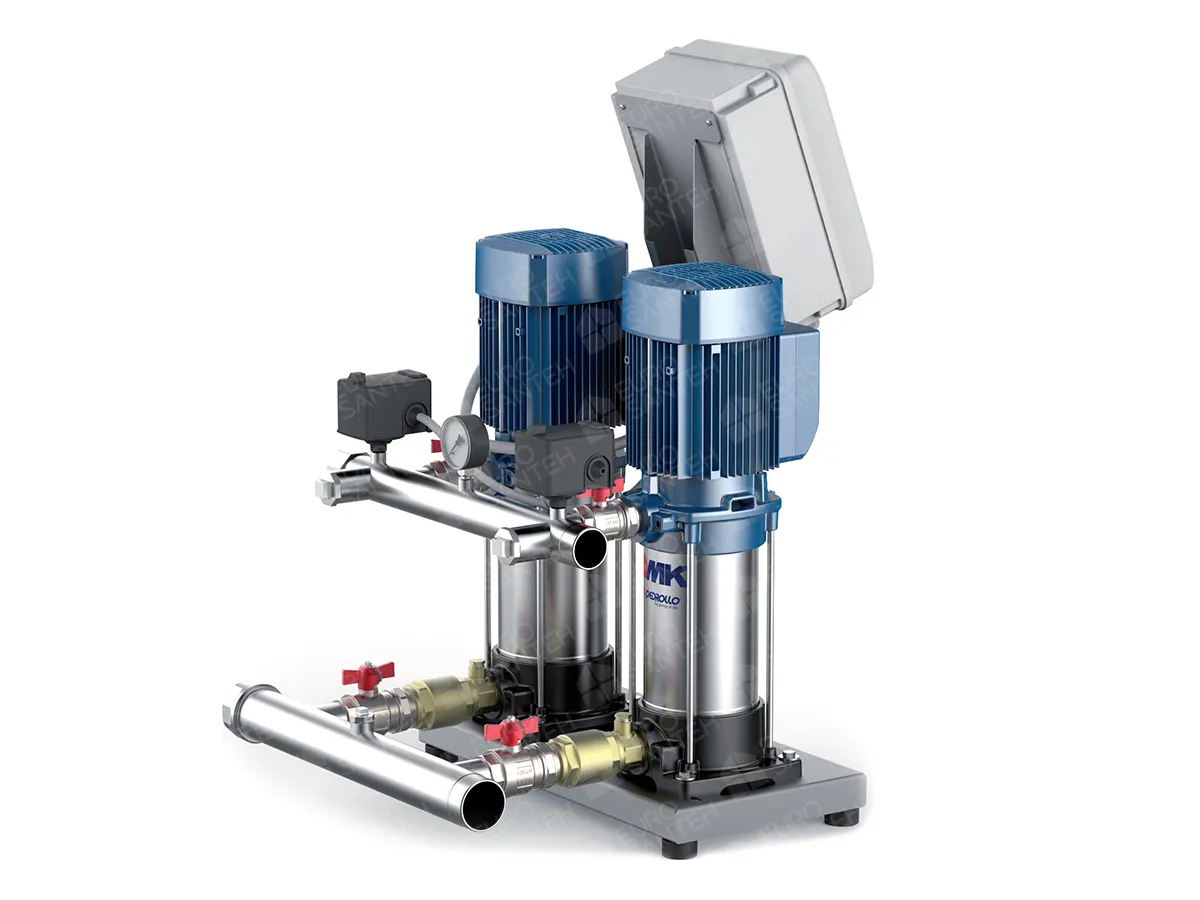

The CB2-MKm5-4-N automatic pressure boosting station is a compact and efficient solution for maintaining stable water pressure in domestic and commercial systems. The unit is based on two single-phase vertical MKm 5-4 pumps combined into a single module on a durable metal frame. Thanks to its single-phase power connection (230 V), the station integrates easily into private homes and small buildings without the need for a three-phase network.
The operating principle is based on the automatic activation of one or both pumps depending on the current water demand. The electronic control panel alternately activates the pumps, ensuring even wear, energy efficiency, and overload protection. The built-in system prevents frequent starts during low water draw-off, increasing the durability of the unit.
The station’s design includes inlet and outlet manifolds, ball valves, check valves, two pressure switches, and a pressure gauge. All equipment is factory-assembled, ready for connection and operation.
Applications:
▪️Private homes with automatic water supply systems;
▪️Irrigation of household plots;
▪️Small hotels, cafés, car washes;
▪️Tank and storage systems.
CB2-MKm5-4-N is the ideal choice for users who require stable pressure, energy efficiency, and reliability in a single-phase network.
By choosing the Pedrollo CB2-MKm5-4-N, you get a reliable, compact, and energy-efficient pressure boosting station fully adapted to single-phase networks. It is perfectly suited for private residences as well as small commercial facilities, ensuring stable water supply even under variable consumption conditions.
When purchasing pumping equipment from the Eurosanteh.md online store, you receive not only original products from an official supplier but also a number of advantages:
▪️Professional consultation in selecting the station for your needs;
▪️Official warranty and product certification;
▪️Fast delivery throughout Moldova;
▪️Installation and service options;
▪️Favorable terms for builders and organizations.
Eurosanteh.md is a trusted supplier of engineering equipment, providing technical support and competent assistance at every stage of the purchase.
Tip motor: | Single phase |
Power, kW: | 2,0x1,1 |
Maximum pumping height, m: | 56 |
Maximum depth, m: | 7 |
Weight, kg: | 59,0 |
Technical dimensions, mm: | 530x692x868 |
Body material: | Cast Iron/Stainless Steel |
Water consumption, m³/h: | 14,4 |
Inlet diameter, inch: | 1 1/2 |
Outlet diameter, inch: | 2 |
Installation method: | Vertical |
Coutry of brand: | Italy |
Maximum working pressure, bar: | 11 |
Max. liquid temperature, °C: | +55 |
