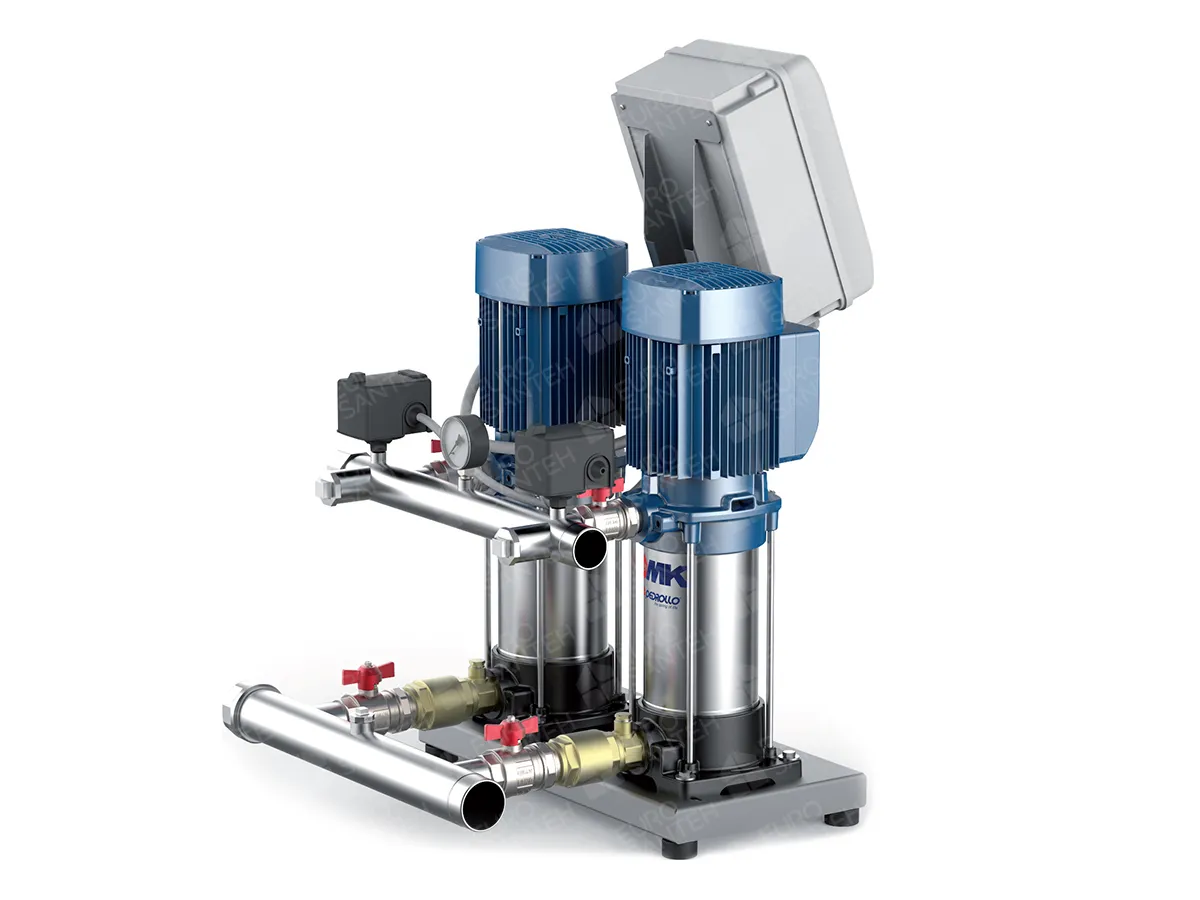

Pedrollo CB2-MKm3-3-N is an automatic dual-pump booster station designed to maintain stable pressure in water-supply systems for residential, commercial, and industrial buildings. It features two vertical Pedrollo MKm 3-3 electric pumps that operate alternately or together based on the load, managed by an intelligent control unit.
Features & Operating Principle:
▪️ Automatically regulates system pressure by activating one or both pumps when pressure falls below the setpoint;
▪️ Electronic control unit provides pump alternation, overload protection, and energy-saving operation;
▪️ Key components (pressure switch, pressure gauge, control panel, non-return valve) are mounted on a metal frame and tied into the discharge manifold;
▪️ Reliable, energy-efficient performance using single-phase MKm pumps—ideal for small to medium installations.
Applications:
▪️ Pressure boosting in apartments, private homes, hotels, and offices;
▪️ Water supply for industrial facilities, farms, and water-treatment plants;
▪️ Irrigation of agricultural fields and greenhouses, and operation of artificial rain/snow systems.
With its compact design, reliability, and automation, this booster station is perfect for sites with variable pressure demands. All station components are safeguarded against overloads and voltage fluctuations, and the anti–rapid-start system prevents premature pump wear.
Tip motor: | Single phase |
Power, kW: | 2,0x0,8 |
Maximum pumping height, m: | 53 |
Maximum depth, m: | 7 |
Weight, kg: | 58,0 |
Technical dimensions, mm: | 530x692x868 |
Body material: | Fonta |
Water consumption, m³/h: | 9,6 |
Inlet diameter, inch: | 2 |
Outlet diameter, inch: | 1 1/2 |
Installation method: | Vertical |
Coutry of brand: | Italy |
Maximum working pressure, bar: | 10 |
Max. liquid temperature, °C: | +55 |
