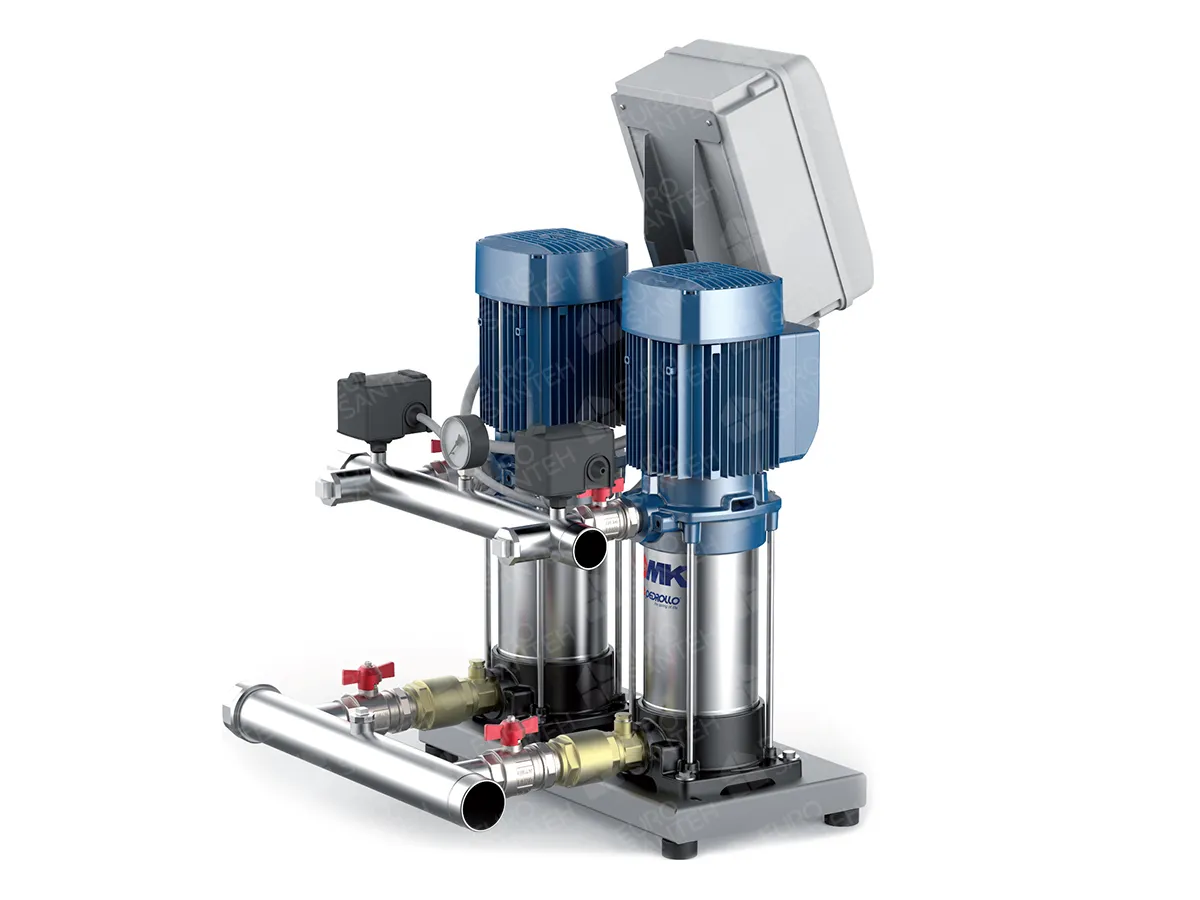

The CB2-MK5-4-N model is an industrial automatic pressure-boosting station based on two vertical MK 5-4 pumps designed for 400 V three-phase power supply. This solution is ideal for facilities with high water consumption that require stable pressure and continuous water delivery.
The unit operates according to a smart algorithm: depending on the system’s needs, one or both pumps are activated when water demand increases. The electronic control panel alternates pump operation, monitors pressure, prevents frequent starts, and provides thermal protection for the motors. All automation components are mounted on the discharge manifold.
The package includes pumps, suction and discharge manifolds, ball valves, check valves, pressure switches, and a pressure gauge. Thanks to the sturdy metal frame, the installation is reliable and stable even under vibration.
Applications:
▪️Water supply systems of apartment buildings;
▪️Industrial facilities;
▪️Medical centers, hotels, schools, boiler rooms;
▪️Agricultural systems and irrigation.
CB2-MK5-4-N is the optimal choice for professional solutions in municipal and commercial infrastructure.
The CB2-MK5-4-N station is a reliable choice for facilities with intensive water consumption. With its three-phase connection and high-performance pumps, the system ensures pressure stability under various conditions — from residential complexes to industrial premises.
When purchasing this model at Eurosanteh.md, you benefit from:
▪️ High-quality equipment directly from Pedrollo;
▪️ Engineering consultations and assistance in designing water supply systems;
▪️ Fast delivery in Chișinău and regions;
▪️ Availability of spare parts and post-warranty service;
▪️ Flexible payment options and discounts on accessories.
Eurosanteh.md — the store that takes care of the performance of your water supply system.
Tip motor: | three-phase |
Power, kW: | 2,0x1,1 |
Maximum pumping height, m: | 56 |
Maximum depth, m: | 7 |
Weight, kg: | 59,0 |
Technical dimensions, mm: | 530x692x868 |
Body material: | Cast Iron/Stainless Steel |
Water consumption, m³/h: | 14,4 |
Inlet diameter, inch: | 2 |
Outlet diameter, inch: | 1 1/2 |
Installation method: | Vertical |
Coutry of brand: | Italy |
Maximum working pressure, bar: | 11 |
Max. liquid temperature, °C: | +55 |
