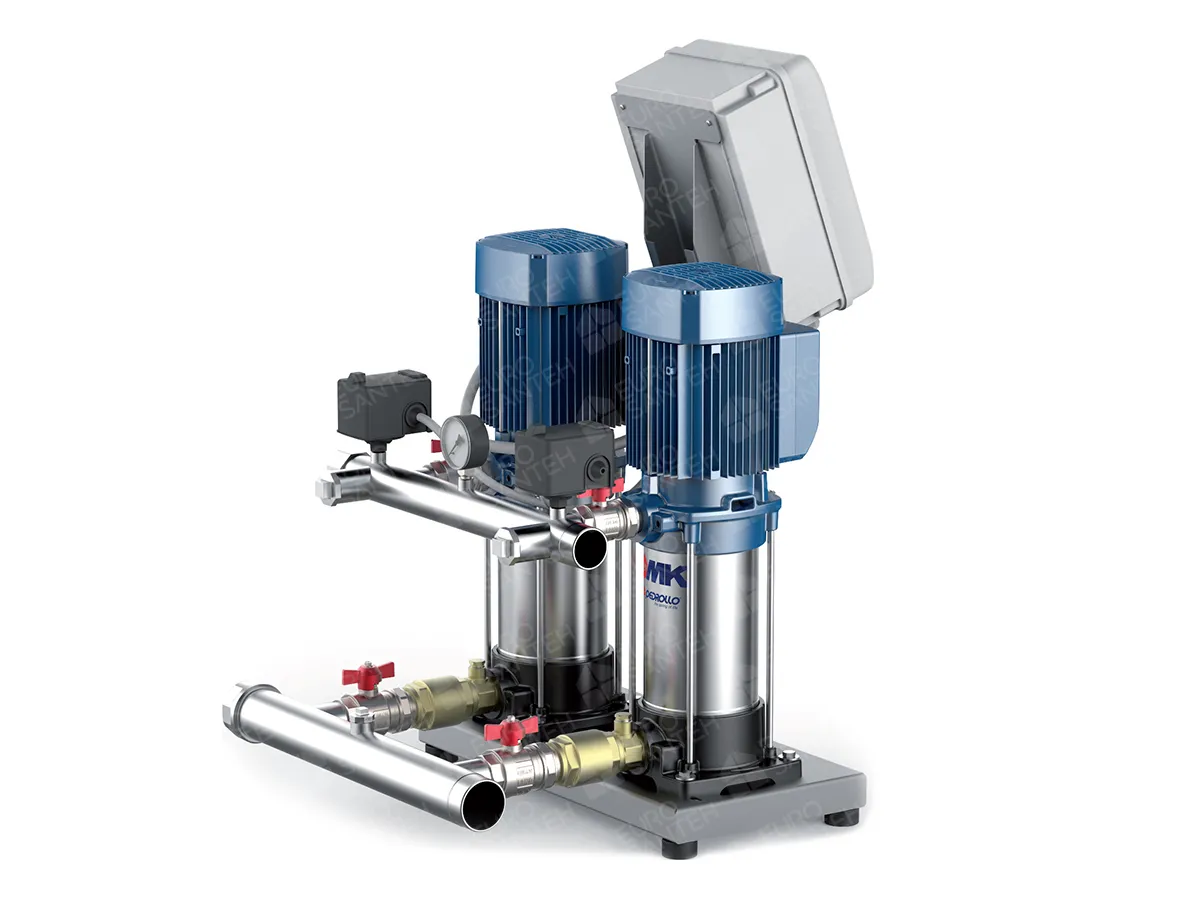

Professional dual-pump installation for stable pressure in water supply networks with high load. The Pedrollo CB2-MK3-4-N is equipped with two vertical three-phase MK 3-4 pumps, which operate alternately or simultaneously depending on the water consumption level in the system.
Thanks to its robust metal construction, compact component layout, and intelligent control, the station delivers high performance, reliability, and long service life. The electronic unit provides protection against overload, low voltage, and excessively frequent starts. The built-in logic optimizes the operation of each pump—using one during moderate demand and both during peak times. This ensures economical energy consumption and efficient water supply without pressure fluctuations.
The station includes:
▪️two Pedrollo MK 3-4 pumps (three-phase);
▪️check valves, manifolds, pressure gauge, and two pressure switches;
▪️electronic control panel with automatic locking and protection.
Recommended for:
▪️residential complexes and hotels;
▪️administrative buildings and medical facilities;
▪️industrial enterprises and agri-industrial complexes;
▪️sports facilities and water treatment stations.
The Pedrollo CB2-MK3-4-N is a reliable industrial-grade pumping station that ensures uninterrupted water supply even during periods of maximum demand. Ideally suited for facilities with high requirements for pressure, stability, and durability.
Tip motor: | three-phase |
Power, kW: | 2,0x1,1 |
Maximum pumping height, m: | 87 |
Maximum depth, m: | 7 |
Weight, kg: | 60,0 |
Technical dimensions, mm: | 530x692x868 |
Body material: | Cast Iron/Stainless Steel |
Water consumption, m³/h: | 9,6 |
Inlet diameter, inch: | 2 |
Outlet diameter, inch: | 1 1/2 |
Installation method: | Vertical |
Coutry of brand: | Italy |
Maximum working pressure, bar: | 10 |
Max. liquid temperature, °C: | +55 |
