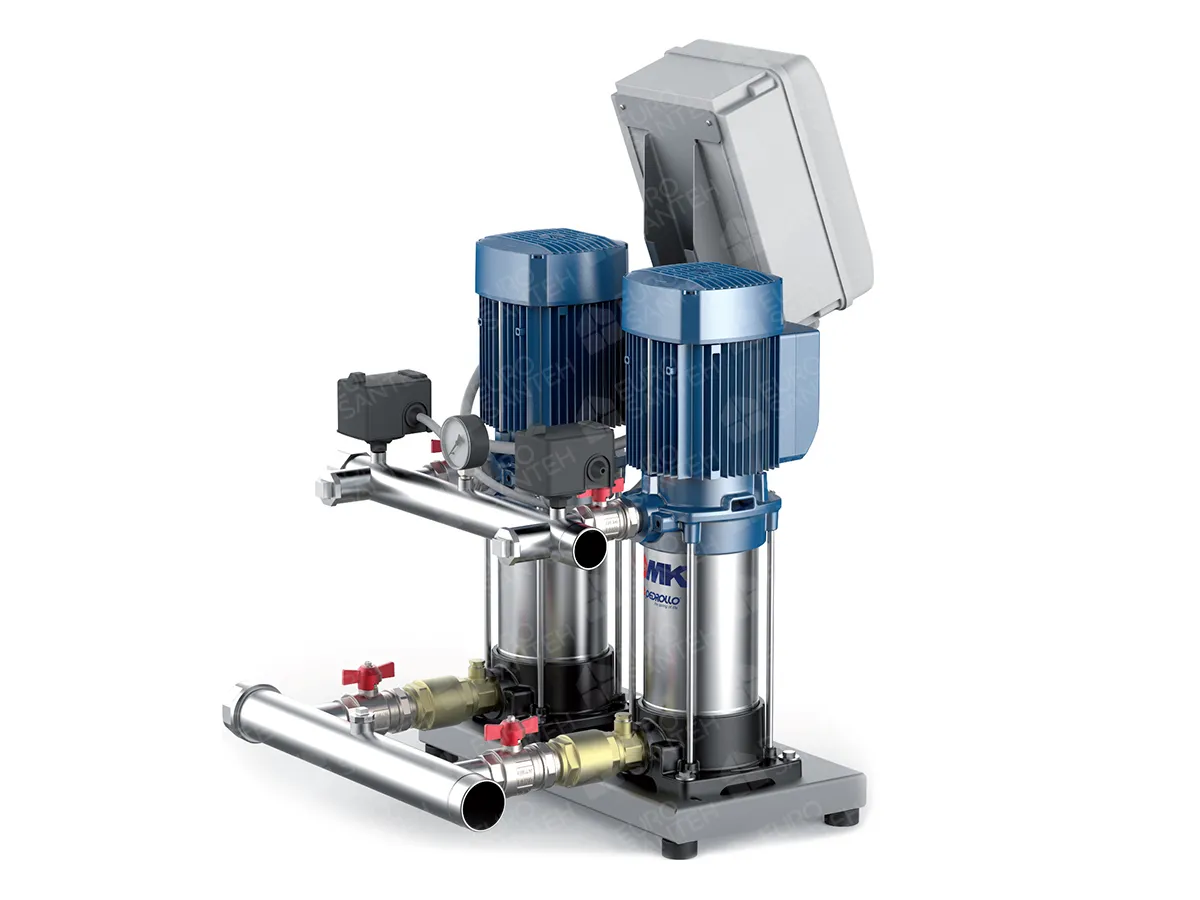

Pedrollo CB2-MK3-3-N is a powerful automatic pumping station featuring two vertical MK 3-3 centrifugal pumps, designed for applications requiring high capacity and stable pressure. It delivers continuous automatic operation by managing pump starts according to real-time water demand.
Key Features:
▪️ Equipped with two three-phase MK 3-3 pumps rated for heavy duty and long service life;
▪️ Compact yet sturdy metal frame with integrated manifolds, ball valves, and check valves;
▪️ Professional control panel offering overload protection, under/over-voltage protection, and anti-cycling (anti-backflow) logic;
▪️ Alternating pump operation to extend pump life and balance energy consumption.
Applications:
▪️ Water-supply for large residential blocks and administrative buildings;
▪️ Industrial facilities requiring constant, adjustable head;
▪️ Irrigation and technical water-supply systems;
▪️ Sports and commercial complexes, water-filtration stations.
This station stands out for its high performance, suitability for variable-load environments, and system protection against water hammer, voltage fluctuations, and false starts. Integrated automation minimizes manual intervention, ensuring 24/7 reliable operation.
You’ll find certified Pedrollo pumping stations, including the CB2-MK3-3-N, at Eurosanteh.md—offering the best prices, nationwide delivery, expert consultation, and full support from setup to connection. Purchase with confidence: quality guaranteed and professional service.
Tip motor: | three-phase |
Power, kW: | 2,0x0,8 |
Maximum pumping height, m: | 52 |
Maximum depth, m: | 7 |
Weight, kg: | 59,0 |
Technical dimensions, mm: | 530x692x868 |
Body material: | Cast Iron/Stainless Steel |
Water consumption, m³/h: | 9,6 |
Inlet diameter, inch: | 2 |
Outlet diameter, inch: | 1 1/2 |
Installation method: | Vertical |
Coutry of brand: | Italy |
Maximum working pressure, bar: | 10 |
Max. liquid temperature, °C: | +55 |
