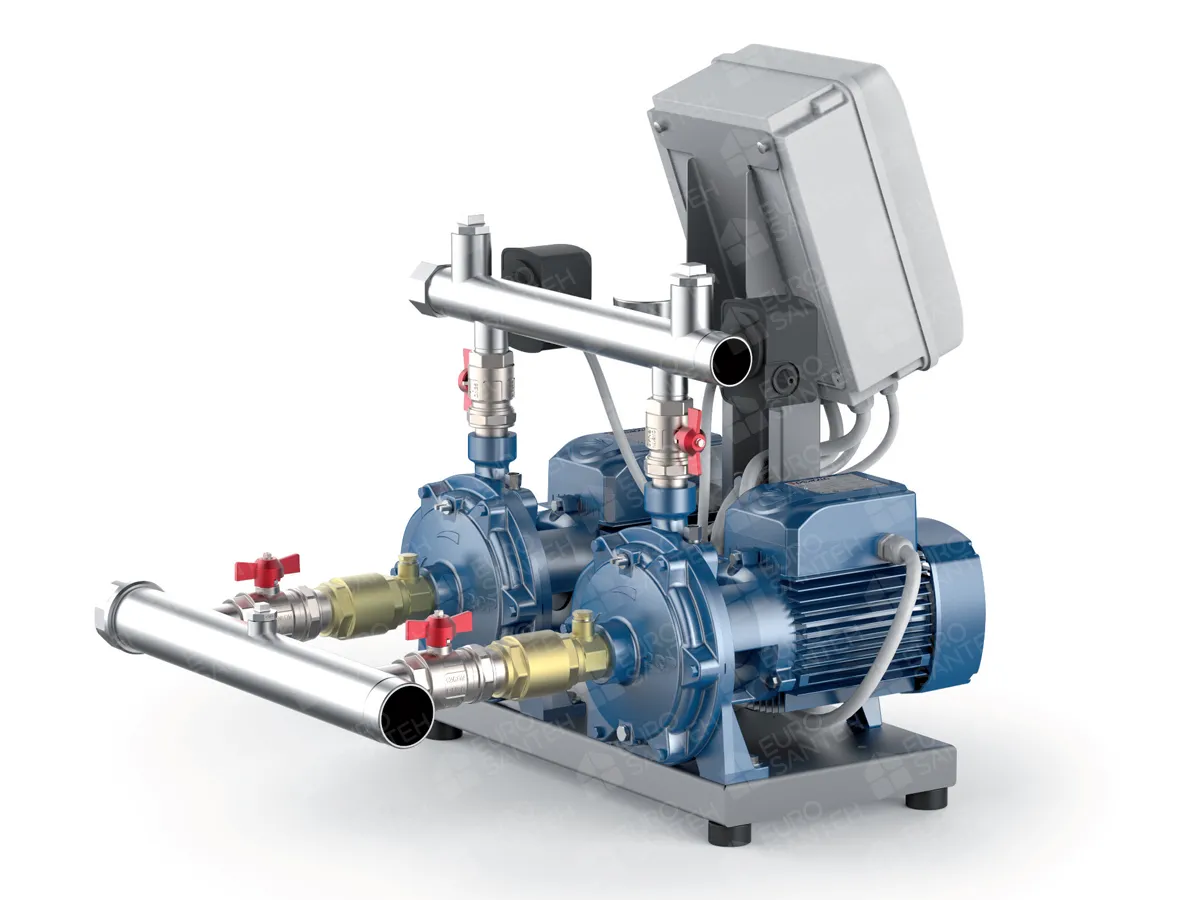

CB2-2CP40-180A Avv. Dir. is an industrial automatic pressure boosting station, built around two powerful Pedrollo CP 40/180A pumps and equipped with a Direct Start (Avviamento Diretto) system. The unit is designed for systems with high water consumption and variable load, where stable pressure and 24/7 reliability are essential. This model is ideal for public utilities, agricultural facilities, fire protection systems, and central pumping or irrigation stations.
Design Features:
▪️Industrial CP 40/180A Pumps:
Deliver high performance at stable pressure. Resistant to wear and hydraulic shocks, suitable for intensive-duty applications.
▪️Rigid Metal Base Frame:
Made from profile steel with anti-corrosion coating. Provides structural stability under vibration and load, preventing deformation during extended use.
▪️Fully Assembled Hydraulic Circuit:
large-diameter suction and delivery manifolds;
ball valves and check valves on each pump;
high-pressure fittings ready for long-term operation.
▪️QE2M Electronic Control Panel:
automatic pump alternation for balanced wear;
protection against frequent starts, overheating, and overloads;
safe low-voltage control system;
control panel lock during maintenance;
two adjustable pressure switches and a manometer for adapting to real-world operating conditions.
Operating Principle:
Operation is fully automatic. When pressure drops, one pump starts. If demand increases, the second pump is activated. After load stabilizes, the pumps shut down in sequence. Automatic alternation extends service life and reduces overload risks. The Direct Start (Avv. Dir.) system simplifies operation and ensures high reliability — especially important for systems with minimal fault tolerance.
Applications:
▪️Water supply systems for residential districts and tall buildings;
▪️Municipal pumping stations, heating points, and boiler houses;
▪️Agro-industrial complexes, greenhouses, and drip irrigation;
▪️Fire protection and water treatment stations;
▪️Technological processes requiring constant pressure.
Pedrollo CB2-2CP40-180A Avv. Dir. is an expertly engineered and reliable solution for large-scale facilities with high water demand. It combines power, robust construction, and automated control to deliver stable pressure, energy efficiency, and low operating costs.
Tip motor: | three-phase |
Power, kW: | 2,0x7,5 |
Maximum pumping height, m: | 88 |
Maximum depth, m: | 7 |
Weight, kg: | 188,0 |
Technical dimensions, mm: | 700x1056x688 |
Body material: | Fonta |
Water consumption, m³/h: | 48,0 |
Inlet diameter, inch: | 4 |
Outlet diameter, inch: | 3 |
Installation method: | Vertical |
Coutry of brand: | Italy |
Maximum working pressure, bar: | 10 |
Max. liquid temperature, °C: | +55 |
