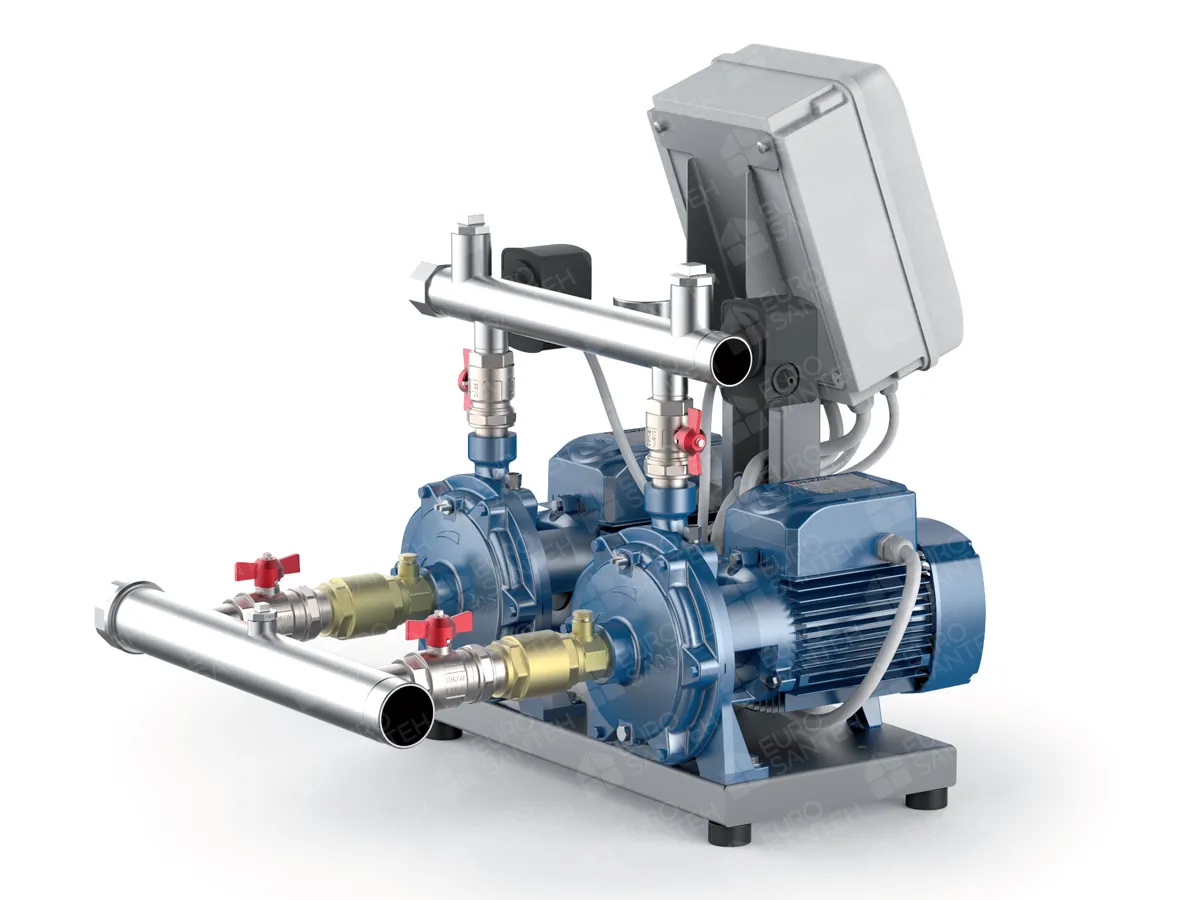

Automatic pressure maintenance station CB2-2CP32-210B Avv. Dir.

CB2-2CP32-210B is a high-performance automatic pressure boosting station, assembled using two three-phase Pedrollo CP 32/210B pumps. The system is designed for water supply in facilities with high demands for flow volume, pressure consistency, and resistance to extreme loads. This model is targeted at industrial, agricultural, commercial, and municipal applications — where standard solutions are insufficient to meet consumption scale.

Design Features:

▪️Pedrollo CP 32/210B pumps:
Powerful three-phase pumps with high pressure and flow performance. Ideal for long-distance water transport and vertical lift systems (high-rise buildings, storage tanks, distribution towers).

▪️Industrial-grade metal frame:
Reinforced steel profile base ensures structural rigidity, vibration protection, and durability even in high-humidity or aggressive environments.

▪️Complete hydraulic assembly:

suction and discharge manifolds with high-strength fittings;

non-return and shut-off valves with anti-corrosion treatment;

compact and logical layout simplifies installation and maintenance.

▪️QE2M intelligent control system:

automatic pump alternation to balance operating wear;

protection against false starts, frequent switching, and overheating;

current and pressure monitoring;

control via low-voltage circuit with full panel lock when accessed;

manual and automatic setting of operating parameters.

▪️Precise pressure adjustment:
Two pressure switches and a manometer allow the system to be fine-tuned for the specific site's requirements. The working range can be adjusted to complex hydraulic layouts with many draw-off points and long pipe runs.

Operating Principle:
CB2-2CP32-210B operates fully autonomously. When system pressure drops, one pump starts. If demand increases, the second pump engages. The control electronics manage automatic pump alternation. As demand decreases, pumps shut down sequentially. Built-in protection mechanisms prevent frequent switching and safeguard the pumps from overload, ensuring reliable, long-lasting operation.

Application Areas:

▪️Centralized water supply systems for cities and towns;
▪️Industrial and power facilities with round-the-clock load;
▪️Multi-functional buildings with high draw-off density;
▪️Desalination, water purification, and treatment stations;
▪️Large-scale agricultural and irrigation complexes;
▪️Technical water supply, cooling, and fire protection systems.

Pedrollo CB2-2CP32-210B is a flagship model for facilities requiring maximum performance, uninterrupted operation, and precise pressure control. Its intelligent automation, robust design, and powerful pumps make it a benchmark for professional-grade water supply systems. An investment in stability, energy efficiency, and long-term reliability.
